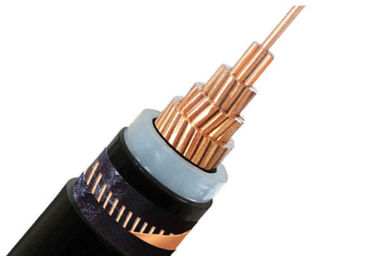

XLPE Insulated Cable

XLPE Insulated Cable

الـ MOQ: 200 عداد
السعر: US$ 3.9~87.6
العبوة القياسية: طبل حديد خشبي
فترة التسليم: 15 يوم عمل
طريقة الدفع: T / T أو LC
قدرة التوريد: 3000km شهريا
معلومات مفصلة
مكان المنشأ
الصين
اسم العلامة التجارية
QINGDAO YICABLE CABLE
إصدار الشهادات
KEMA, CE, CCC, KEMA
اسم المنتج:
33kV XLPE كابل معزول
بحجم:
35mm2 إلى 1000 MM2
عدد الأساسية:
3 الأساسية
اساسي:
IEC 60502-2 ، IEC 60228
تطبيق:
لوضع في الداخل والخارج
جهد فلطيّ مصنّف:
33KV
عينة مجانية:
نعم
ضمان:
24 شهر
إبراز:

xlpe power cable,cross linked polyethylene cable

,

cross linked polyethylene cable

وصف المنتج

Three Core Copper Conductor XLPE Insulated Medium Voltage 11kV Power Cable

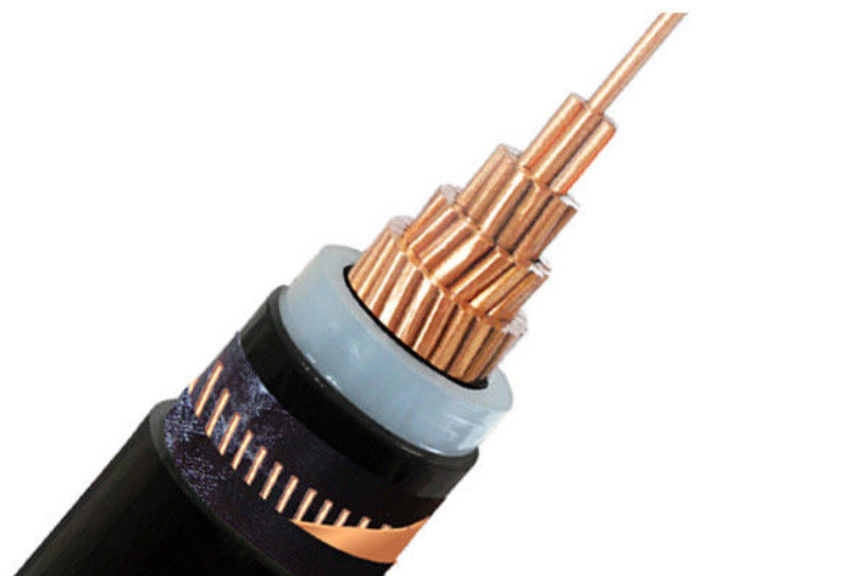

Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 OC

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black



Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage:6/10kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core



Specifications

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 25 7/2.14 3.4 2 20.0 598 0.727 21 140 150
1 × 35 7/2.52 3.4 2 22.0 719 0.524 21 175 180
1 × 50 10/2.52 3.4 2 23.0 884 0.387 21 205 215
1 × 70 14/2.52 3.4 2 24.0 1097 0.268 21 260 265
1 × 95 19/2.52 3.4 2 26.0 1378 0.193 21 315 315
1 × 120 24/2.52 3.4 2 28.0 1658 0.153 21 365 360
1 × 150 30/2.52 3.4 2 30.0 1967 0.124 21 415 405
1 × 185 37/2.52 3.4 2 31.0 2335 0.0991 21 475 455
1 × 240 48/2.52 3.4 2 34.0 2908 0.0754 21 565 530
1 × 300 61/2.52 3.4 2 36.0 3507 0.0601 21 645 595
1 × 400 61/2.97 3.4 2.5 39.0 4503 0.0470 21 750 680
1 × 500 61/3.23 3.4 2.5 42.0 5479 0.0366 21 865 765
1 × 630 61/3.50 3.4 2.5 48.0 6952 0.0283 21 990 860
1 × 800 91/3.20 3.4 2.6 52.0 7120 0.0221 21 1140 950
1 × 1000 91/3.75 3.4 2.8 57.0 10500 0.0176 21 1250 1040
3 × 25 7/2.14 3.4 2.3 41.0 895 0.727 21 120 125
3 × 35 7/2.52 3.4 2.4 44.0 2293 0.524 21 145 155
3 × 50 10/2.52 3.4 2.5 46.0 2812 0.387 21 175 180
3 × 70 14/2.52 3.4 2.6 50.0 3508 0.268 21 220 220
3 × 95 19/2.52 3.4 2.7 53.0 4402 0.193 21 265 265
3 × 120 24/2.52 3.4 2.8 56.0 5319 0.153 21 305 300
3 × 150 30/2.52 3.4 2.9 59.0 6309 0.124 21 350 340
3 × 185 37/2.52 3.4 3.0 62.0 7319 0.0991 21 395 380
3 × 240 48/2.52 3.4 3.2 68.0 9218 0.0754 21 470 435
3 × 300 61/2.52 3.4 3.4 72.0 11159 0.0601 21 535 485
3 × 400 61/2.97 3.4 3.6 81.0 15107 0.0470 21 610 520
