| الـ MOQ: | 500 |
| السعر: | USD 1-100 Per Meter |
| العبوة القياسية: | طبل حديد أو طبل خشبي |
| فترة التسليم: | 15 يوم |
| طريقة الدفع: | L/C, T/T, ويسترن يونيون, MoneyGram |
| قدرة التوريد: | 1000 كم في الشهر |

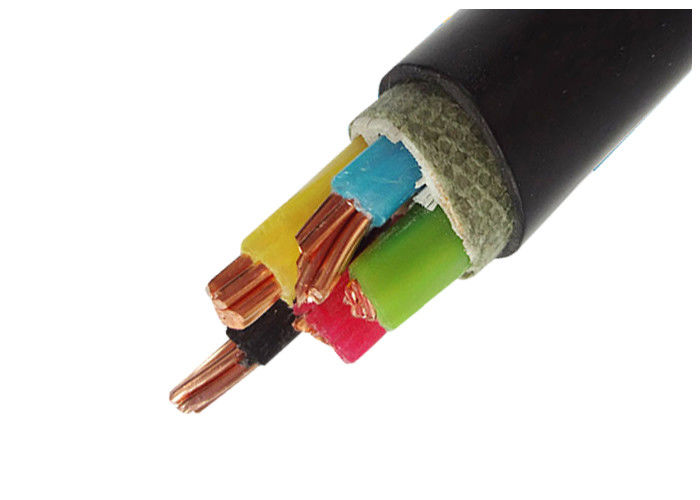

3 Core Copper Low Voltage Power Cables For Industrial Wiring and Mains Distribution
Applications: Industrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air.
CONSTRUCTION
Conductor : Single, Two, Three, Four and Five core cables. Stranded plain copper conductors Insulation : XLPE insulated, cores laid up, extruded PVC bedding, galvanised steel wire armoured (Aluminium wires for single cores) and PVC sheathed.
STANDARD COLOURS
Cores : Single-core- Red or Black 2-core- Red and Black 3-core- Red, Yellow and Blue 4-core- Red, Yellow, Blue and Black 5-core- Red, Yellow, Blue, Black and Green/Yellow As per New Harmonised Code Single-core- Brown or Blue 2-core- Brown and Blue 3-core- Brown, Black and Grey 4-core- Brown, Black Grey and Blue 5-core- Brown, Black, Grey, Green/Yellow and Blue
PROPERTY:
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees. 2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees. 3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated. 4.Excellent electrical performance, resistance to chemical corrosion. 5.They can stand advisable traction when laid. They can stand traction from Outside. Left low smoke halogen-free after burned. Retard the burning of the cabl
Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
|
|
