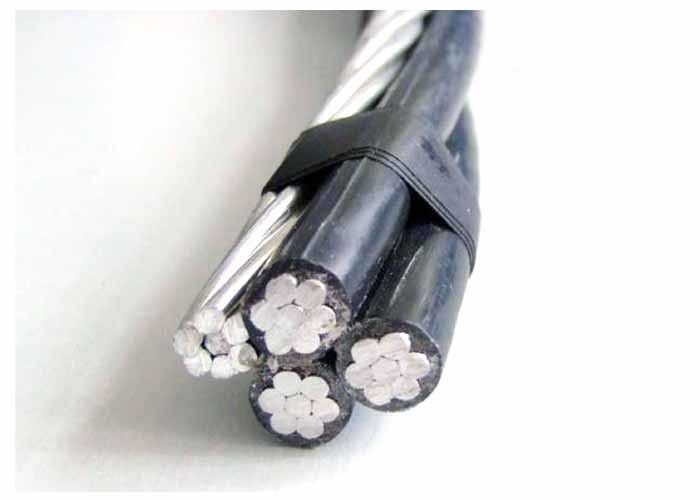

ABC 1KV Electrical Insulated Aerial Bundled Cable Without Street Lighting

ABC 1KV Electrical Insulated Aerial Bundled Cable Without Street Lighting

الـ MOQ: 500m
السعر: 0.19-10.99USD/m
العبوة القياسية: طبل خشبي / طبل الصلب
فترة التسليم: 15 يوم
طريقة الدفع: L/C, D/A, D/P, T/T
معلومات مفصلة
مكان المنشأ
الصين
اسم العلامة التجارية
QINGDAO YICABLE CABLE
إصدار الشهادات
ASTM B-231,B232,B399, ICEA S-76-47
موصل المرحلة:
الألومنيوم
محايد أو رسول:
موصل سبائك الألومنيوم والمضغوطة دائرية الذين تقطعت بهم السبل
تطبيق:
خطوط نقل الطاقة العلوية
عازلة:
XLPE أو PVC
الجهد االكهربى:
0.6 / 1 KV
لب:
3.4.5.6.
إبراز:

xlpe electrical cable,xlpe power cable

,

xlpe power cable

وصف المنتج

0.6/1(1.2)kV AL/XLPE(PE) Insulated

Aerial Bundled Cables without Street Lighting Conductor










Description
The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.
Construction

  1. Conductor:



a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.

b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.

  1. Insulation:


The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.
ABC 1KV Electrical Insulated Aerial Bundled Cable Without Street Lighting 0

Schedule of technical particulars

Phase conductor
Nominal cross-sectional areamm²16162535507095120150185
Number of cores 1333333333
Minimum number of wires 666661215153030
Nominal insulation thicknessmm111.21.21.41.41.61.61.82.0
Diameter of insulated coremm6.86.88.59.511.213.015.116.618.420.6
Max. DC resistance at 20℃ohm/km1.911.911.200.8680.6410.4430.3200.2530.2060.164
Current rating at still wind, ambientA616184104129167209246283332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional areamm²252525253550707095120
Minimum number of wires 66666612121515
Nominal insulation thicknessmm1.21.21.21.21.21.41.41.41.61.6
Diameter of insulated coremm8.58.58.58.59.511.213.113.115.116.6
Max. DC resistance at 20℃ohm/km1.3121.3121.3121.3120.9430.6930.4690.4690.3490.273
Calculated breaking loadkN6.46.46.46.48.912.118.018.024.230.8
Completed cable
Approx. overall diametermm15.319.023.225.630.034.940.644.149.254.9
Approx. weight of cablekg/km1602904005006809201270151018702340
Packing lengthm/drum100010001000100010001000500500500500
