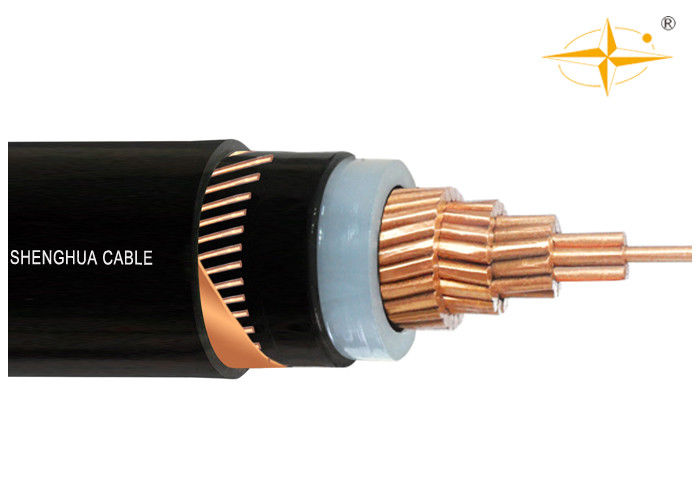

MV 19/33kV CU/XLPE/CTS/PVC XLPE Insulated Power cable with the copper wire screen
Description:
18/30kV XLPE Insulated cables
CU/XLPE/ PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO
Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape or Copper wire Screen as per request
Sheath : PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or customer requirement
Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 18/30kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates
CE, RoHS, CCC, KEMA and more others at request
Technical Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 1 × 50 | 10/2.52 | 8 | 2 | 33.0 | 1560 | 0.387 | 63 | 210 | 215 |
| 1 × 70 | 14/2.52 | 8 | 2.1 | 35.0 | 1840 | 0.268 | 63 | 260 | 265 |
| 1 × 95 | 19/2.52 | 8 | 2.1 | 36.0 | 2140 | 0.193 | 63 | 320 | 315 |
| 1 × 120 | 24/2.52 | 8 | 2.2 | 38.0 | 2450 | 0.153 | 63 | 370 | 360 |
| 1 × 150 | 30/2.52 | 8 | 2.2 | 39.0 | 2790 | 0.124 | 63 | 420 | 405 |
| 1 × 185 | 37/2.52 | 8 | 2.3 | 41.0 | 3200 | 0.0991 | 63 | 480 | 455 |
| 1 × 240 | 48/2.52 | 8 | 2.3 | 43.0 | 3800 | 0.0754 | 63 | 565 | 530 |
| 1 × 300 | 61/2.52 | 8 | 2.4 | 45.0 | 4460 | 0.0601 | 63 | 650 | 595 |
| 1 × 400 | 61/2.97 | 8 | 2.5 | 49.0 | 5530 | 0.0470 | 63 | 755 | 680 |
| 1 × 500 | 61/3.23 | 8 | 2.6 | 53.0 | 6160 | 0.0366 | 63 | 865 | 765 |
| 1 × 630 | 61/3.50 | 8 | 2.7 | 56.0 | 8020 | 0.0283 | 63 | 1000 | 860 |
| 3 × 50 | 10/2.52 | 8 | 2.8 | 55.0 | 5290 | 0.387 | 63 | 175 | 180 |
| 3 × 70 | 14/2.52 | 8 | 2.9 | 59.0 | 6240 | 0.268 | 63 | 220 | 220 |
| 3 × 95 | 19/2.52 | 8 | 3.0 | 62.0 | 7360 | 0.193 | 63 | 255 | 265 |
| 3 × 120 | 24/2.52 | 8 | 3.1 | 66.0 | 8350 | 0.153 | 63 | 290 | 300 |
| 3 × 150 | 30/2.52 | 8 | 3.2 | 69.0 | 9520 | 0.124 | 63 | 330 | 340 |
| 3 × 185 | 37/2.52 | 8 | 3.4 | 72.0 | 10830 | 0.0991 | 63 | 435 | 380 |
| 3 × 240 | 48/2.52 | 8 | 3.5 | 77.0 | 12810 | 0.0754 | 63 | 495 | 435 |
| 3 × 300 | 61/2.52 | 8 | 3.7 | 82.0 | 14920 | 0.0601 | 63 | 565 | 485 |
| 3 × 400 | 61/2.97 | 8 | 3.9 | 90.0 | 18110 | 0.0470 | 63 | 640 | 520 |
Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
PACKING AND SHIPPING
We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Aftersales Service Commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
|
|
