| الـ MOQ: | 500m |
| السعر: | USD (0.5-100) per meter |
| العبوة القياسية: | طبل خشبي الصلب التعبئة مع حماية الحديد |
| فترة التسليم: | 7-15 أيام |
| قدرة التوريد: | 100 كم شهريا |
Low Voltage 0.6/1kV Copper XLPE insulated Power Cable
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90℃
Outer sheath : PVC
CODE Designation:
YJ: XLPE insulation
V: PVC sheath
Applications:
Suitable for use in power distribution lines with rated voltage 0.6/1 KV. These cables have a low dielectric loss, used in indoors, in cable ducts, underground, in power or switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Standards:
International: IEC 60502-1, IEC 60228
China: GB/T 12706.1-2008
Germany: VDE 0276
Britain: BS 7889
Technical data:
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x D
D: Cable outer diameter

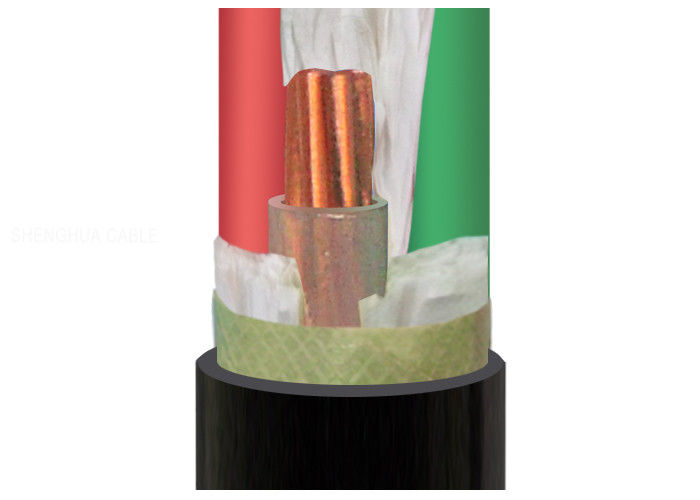

Construction:
1. Solid or Stranded copper conductor
2. XLPE insulation
3. Filler
4.PVC outer sheath
Certificates:
CE, RoHS, CCC, KEMA and more others at request
Technical Specifications
| Nom. Cross-section of conductor | Strands No./Dia. of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx .Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | Lower Limit (mm) | kg/km | Ω /km | kV/5min | In air (A) | Direct In soil(A) |
| 1 × 1.5 | 1/1.38 | 0.7 | 1.5 | 6 | 53 | 12.1 | 3.5 | 26 | 33 |
| 1 × 2.5 | 1/1.78 | 0.7 | 1.5 | 6 | 68 | 7.41 | 3.5 | 34 | 43 |
| 1 × 4 | 1/2.25 | 0.7 | 1.5 | 7 | 87 | 4.61 | 3.5 | 44 | 56 |
| 1 × 6 | 1/2.76 | 0.7 | 1.5 | 7 | 110 | 3.08 | 3.5 | 56 | 70 |
| 1 × 10 | 7/1.38 | 0.7 | 1.5 | 8 | 155 | 1.83 | 3.5 | 77 | 94 |
| 1 × 16 | 7/1.78 | 0.7 | 1.5 | 9 | 220 | 1.15 | 3.5 | 100 | 120 |
| 1 × 25 | 7/2.14 | 0.9 | 1.5 | 10.0 | 345 | 0.727 | 3.5 | 130 | 155 |
| 1 × 35 | 7/2.52 | 0.9 | 1.5 | 12.0 | 424 | 0.524 | 3.5 | 160 | 185 |
| 1 × 50 | 10/2.52 | 1.0 | 1.5 | 13.0 | 555 | 0.387 | 3.5 | 195 | 220 |
|
|
