| الـ MOQ: | 1000 متر |
| السعر: | USD 0.2 - 29.5 per Meter |
| العبوة القياسية: | طبل |
| فترة التسليم: | 10-15 يوما |
| قدرة التوريد: | 8 كم في اليوم |

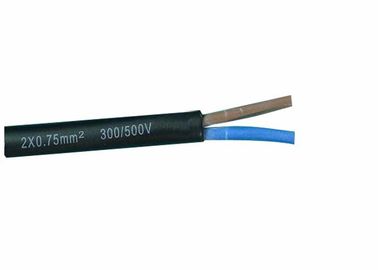

Flexible Cores Rubber Insulation Rubber Sheath Cable H05RN-F Light Model Rubber Sheathed Cable
Rubber sheathed flexible cable wire
Working temperature
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
| Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
| min | max | Copper | Tinned-Copper | YC | YCW | ||
| 1x1.5 | 30/0.25 | 5.7 | 7.1 | 13.3 | 13.7 | 51.9 | 54.50 |
| 1x2.5 | 49/0.25 | 6.3 | 7.9 | 7.98 | 8.21 | 73.7 | 77.39 |
| 1x4 | 56/0.3 | 7.2 | 9 | 4.95 | 5.09 | 110.5 | 116.03 |
| 1x6 | 84/0.3 | 7.9 | 9.8 | 3.3 | 3.39 | 132 | 138.60 |
| 1x10 | 84/0.4 | 9.5 | 11.9 | 1.91 | 1.95 | 220.6 | 231.63 |
| 1x16 | 126/0.4 | 10.8 | 13.4 | 1.21 | 1.24 | 295.1 | 309.86 |
| 1x25 | 196/0.4 | 12.7 | 15.8 | 0.78 | 0.795 | 425.6 | 446.88 |
| 1x35 | 276/0.4 | 14.3 | 17.9 | 0.386 | 0.393 | 589.2 | 618.66 |
| 1x50 | 396/0.4 | 16.5 | 20.6 | 0.295 | 0.297 | 758.4 | 796.32 |
| 1x70 | 360/0.5 | 18.6 | 23.3 | 0.272 | 0.277 | 1034.1 | 1085.81 |
| 1x95 | 475/0.5 | 20.8 | 26 | 0.206 | 0.21 | 1324.7 | 1390.94 |
| 2x1.5 | 30/0.25 | 8.5 | 11 | 13.3 | 13.7 | 132 | 138.60 |
| 2x2.5 | 49/0.25 | 10.2 | 13.1 | 7.98 | 8.21 | 203.6 | 213.78 |
| 2x4 | 56/0.3 | 11.8 | 15.4 | 4.95 | 5.09 | 280.2 | 294.21 |
| 2x6 | 84/0.3 | 13.1 | 16.8 | 3.3 | 3.39 | 412.2 | 432.81 |
| 2x10 | 84/0.4 | 17.7 | 22.6 | 1.91 | 1.95 | 669.1 | 702.56 |
| 2x16 | 126/0.4 | 20.2 | 25.7 | 1.21 | 1.24 | 906.6 | 951.93 |
| 2x25 | 196/0.4 | 24.3 | 30.7 | 0.78 | 0.795 | 1144.3 | 1201.52 |
| 2x35 | 276/0.4 | 27.3 | 34.6 | 0.386 | 0.393 | 1505.5 | 1580.78 |
| 2x50 | 396/0.4 | 31.8 | 40.1 | 0.295 | 0.297 | 2464.2 | 2587.41 |
| 2x70 | 360/0.5 | 35.8 | 45.1 | 0.272 | 0.277 | 3254.8 | 3417.54 |
| 2x95 | 475/0.5 | 40.2 | 51 | 0.206 | 0.21 | 4144.3 |
435
|
Construction
Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber Sheath
Sheath: Rubber Sheath
Application
This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment
Insulation Color
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow
Sheath Color
Black
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
After-service commitment
We specialize in manufacturing and exporting many kinds of wire and cables. We have professional engineers, skilled workers, advanced manufacturing equipments and scientific management.
Our commitment to service and our abilities to provide the ideal solutions for your application is the basis for our growth. When you come to Ninggang, you can expect personalized attention. Our experts will help to identify, solve and supply your flexible cable needs and requirements- for any environment.
|
|
