| الـ MOQ: | 500m |
| العبوة القياسية: | طبل خشبيّ |
| فترة التسليم: | 7-10 أيام |
| طريقة الدفع: | L / C ، T / T |
| قدرة التوريد: | 6542000m / الأسبوع |

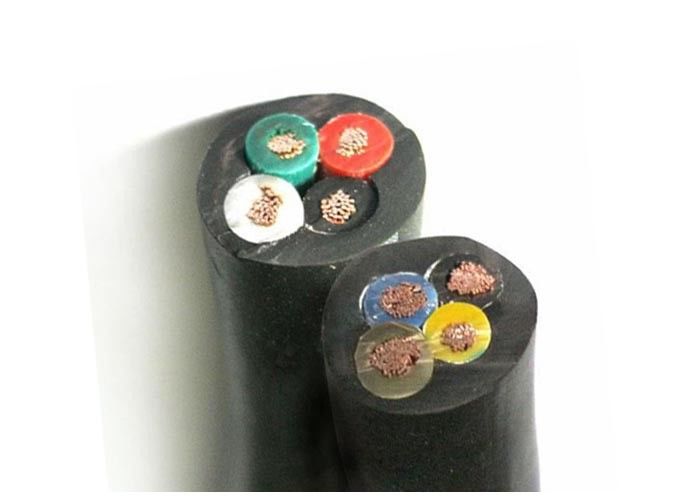

Black Heavy Rubber sheathed Cable EPR Insulated CPE Fire Resistant
Construction:
Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber Sheath
Sheath: Rubber Sheath
Application :
This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment
Insulation Color:
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow
Voltage Class:300/500V
Rated Temperature: Continuous working temperature under 70°C is allowed for the conductor
Standard: CCC is according with IEC60245-4 standard
CE is according with the EMC regulations of 2004/108/EC (low voltage procedures) the provisions of CE
Conductor Material: Stranded flexible fine twisted copper wire
Insulation Structure:Rubber or EPR
Core Wire Type: Centralized accordant
Sheath Material:Rubber or Neoprene
Application: This middle duty rubber cable is applied to the power connecting cable of electrical equipment and small electric tools
Package: Soft packing of a knitted woven cloth, carton, wooden plate or iron plate
| Cross-Sectional Area mm2 | Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km | Approx Weight (kg/km) | |||
| min | max | ||||||
| 2x0.3 | 16/0.15 | 4.3 | 5.8 | 69.2 | 71.2 | 30 | 31.5 |
| 2x0.5 | 28/0.15 | 4.8 | 6.4 | 39 | 40.1 | 43 | 45.5 |
| 3x0.3 | 16/0.15 | 4.6 | 6.1 | 69.2 | 71.2 | 36 | 38.5 |
| 3x0.5 | 28/0.15 | 5.1 | 6.7 | 39 | 40.1 | 74 | 77 |
|
|
