| الـ MOQ: | 500meter |
| العبوة القياسية: | طبل خشبيّ |
| فترة التسليم: | حسب الجدول الزمني |
| طريقة الدفع: | L/C, T/T, D/A, D/P, ويسترن يونيون, MoneyGram |

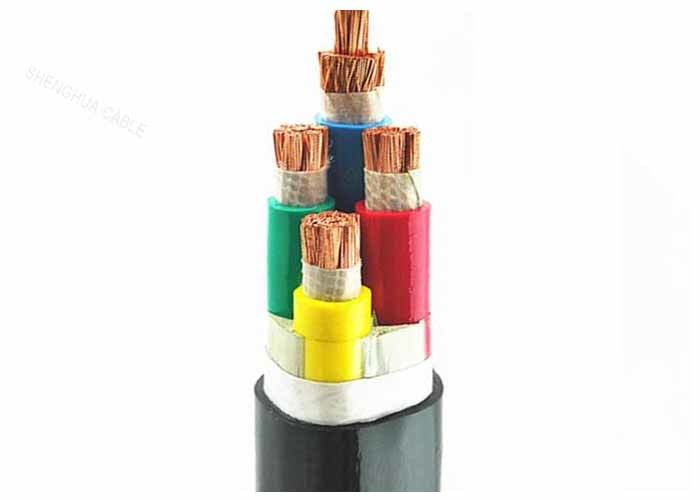

0.6/1kV Flexible FRC Cable CU/XLPE/PVC Fire Orange Color Resistant Cable Price
Applications
PVC Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.
Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal and salty water if specially made.
Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request
Installation
1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.
Technical parameter:
| Cross section of conductor | Thickness of insulation | Thickness of Sheath | Approx.cable diameter | Max.resistance of conductor at 20 ℃ | Test Voltage(AC) |
| mm2 | mm | mm | mm | ohm/km | KV/5min |
| 4x2.5 | 0.8 | 1.8 | 12.7 | 7.41 | 3.5 |
| 4x4 | 1.0 | 1.8 | 14.9 | 4.61 | 3.5 |
| 4x6 | 1.0 | 1.8 | 16.1 | 3.08 | 3.5 |
| 4x10 | 1.0 | 1.8 | 19.2 | 1.83 | 3.5 |
| 4x16 | 1.0 | 1.8 | 21.7 | 1.15 | 3.5 |
| 4x25 | 1.2 | 1.8 | 25.9 | 0.73 | 3.5 |
| 4x35 | 1.1 | 1.8 | 28.7 | 0.524 | 3.5 |
| 4x50 | 1.4 | 1.9 | 30.4 | 0.387 | 3.5 |
| 4x70 | 1.6 | 2.1 | 33.9 | 0.268 | 3.5 |
| 4x95 | 1.6 | 2.2 | 39.7 | 0.193 | 3.5 |
| 4x120 | 1.8 | 2.4 | 44.2 | 0.153 | 3.5 |
| 4x150 | 2.0 | 2.0 | 48.7 | 0.124 | 3.5 |
| 4x185 | 2.2 | 2.7 | 53.5 | 0.0991 | 3.5 |
| 4x240 | 2.4 | 2.9 | 55.4 | 0.0754 | 3.5 |
| 4x300 | 2.6 | 3.0 | 61.0 | 0.060 | 3.5 |
| 4x400 | 2.6 | 3.2 | 70.0 | 0.0470 | 3.5 |
Technical data:
Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2
|
|
