| الـ MOQ: | ارتفاع 2000m |
| السعر: | USD0.03-20 per meter |
| العبوة القياسية: | 100 متر / لفة أو مخصصة |
| فترة التسليم: | 20 كم في الأسبوع |

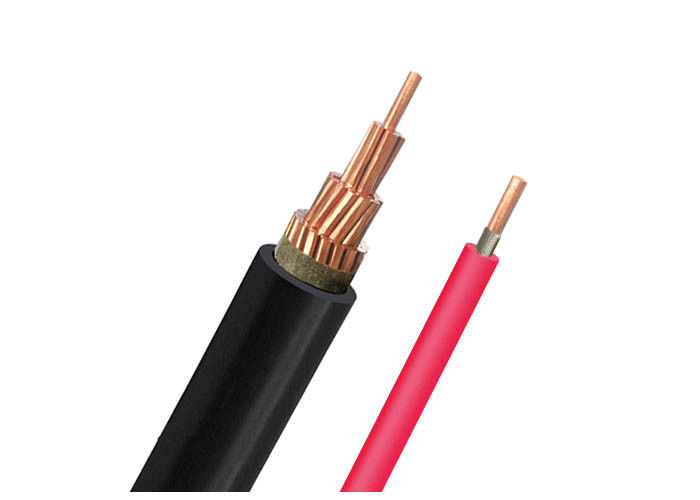

300/500V Mica+XLPE Insulated & LSZH Sheathed Fire Cables IEC60332
Fire Resistant Fire Alarm Cable
Rated Voltage: 300/500V 0.6/1KV
Model: FR FireAlarm
Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2
Application:
These cables are installed to supply power to building essential services including fire alarms,
sprinkler control system, emergency and evacuation lighting and smoke control systems,
such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels
Constructions
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation: XLPE or LSZH compound
Sheath: LSZH compound
Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath
Max. Operating Temperature :100 meters per roll or wooden drum or as per requirement
Production Capacity :20 kilometer/ day
MOQ : 5000 meters for small size, 1000 meters for big size
Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Fire Resistant Cables (Single-Core)
• Rated voltage: 450/750V, 600/1000V
• Construction: Bare stranded or solid copper conductor / Mineral ceramic (Mica/Glass) fire resistant tape / LSOH insulation
• Range: 0.5mm² – 400mm²
• Application: For fixed wiring / Essential safety circuits where the cable is protected by trunk or conduit
300/500V Mica+XLPE Insulated, LSZH Sheathed Power Cables (2-4 cores)
600/1000V Mica+XLPE Insulated, LSZH Sheathed Power Cables (2-4 cores)
300/500V SR Insulated Control Cables (2-4 Cores)
300/500V SR Insulated & Overall Screened Control Cables (2-4 Cores & Multicores)
300/500V Mica+SR Insulated & Overall Screened Control Cables (2-4 Cores & Multicores)
450/750V SR Insulated Control Cables (2-5 Cores)
450/750V SR Insulated & Overall Screened Control Cables (2-4 Cores & Multicores)
600/1000V SR Insulated Flexibles Control Cables
|
|
