| الـ MOQ: | 200M |
| السعر: | USD0.03-50 |
| العبوة القياسية: | 100 متر / لفة أو مخصصة |
| فترة التسليم: | وفقا للجدول الزمني |
| طريقة الدفع: | L / C ، T / T |
| قدرة التوريد: | 10 كم في الأسبوع |

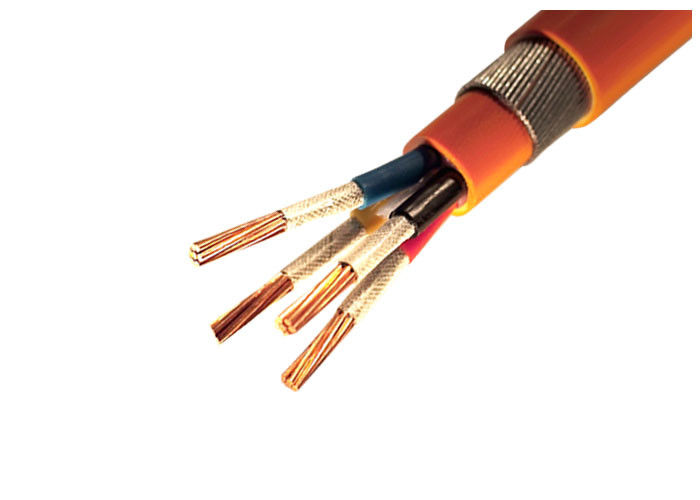

FRC XLPE Fire Resistant Cable Price Indoor / Outdoor Power Transmit
Application: These cables are installed to supply power to building essential services including fire alarms, sprinkler control system, emergency and evacua tion lighting and smoke control systems, such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail
tunnels.
Conductor: Class 1/2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.
Insulation: Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.
Xlpe Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per BS
1 Red or Black Brown or Blue
2 Red & Black Brown, Blue
3 Red, Yellow Blue Brown, Black, Grey
4 Red, Yellow, Blue & Black Blue, Brown, Black, Grey
5 Red, Yellow, Blue, Black, Y/G Blue, Brown, Black, Grey & Y/G
Armour : When armouring is required, the armour consists of single layer of galvanised steel wires/galvanized steel tapes.
The armour is applied helically as per standards.
Single core cables are armoured with Aluminium Wires or Copper wires based on requirement.
Outersheath : Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer’s specific requirements.
1. OEM service available based on official & legal authorization.
2. Strict quality control system. CCC qualified certificate.
3. short lead time.
4.Reasonable price.
5. Strong technical support (technical data, structure drawing, etc.)
6. Cable solutions to your particular requirements.
7. Free sample is available with economic Express cost.
|
|
