| الـ MOQ: | 200M |
| السعر: | 0.38-25.6 |
| العبوة القياسية: | طبل خشبي أو حالة |
| فترة التسليم: | حسب الجدول الزمني |
| طريقة الدفع: | L / C ، T / T |
| قدرة التوريد: | 500KM / شهر |

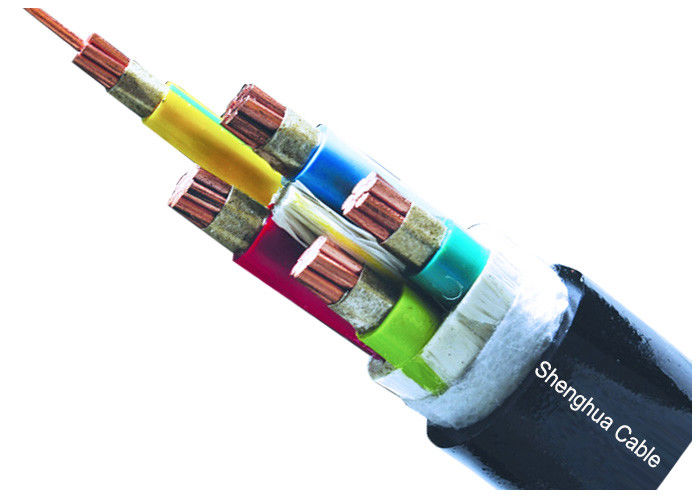

Fire Resistant No Halogen Power CableCopper Conductor Power Cable Rated Voltage 0.6/1kV
0.6/1kV N2XH (with mica glass tape)
Construction: ** Cu/MGT/XLPE/HFLS
Single core Halogen Free, Low Smoke and Fire Resistant Power cable
0.6/1kV N2XH (with mica glass tape)
Construction: ** Cu/MGT/XLPE/HFLS
Conductor: Solid or strand copper
Fire barrier: Mica glass tape (over conductor)
Insulation: XLPE
Outer sheath: Halogen free and low smoke
Standard: IEC60228, IEC60552, IEC60332
| Number of cores x cross section | Insulation thickness | Sheath thickness | Overall diameter | Max. Conductor resistance | Inductance | |
| DC at 20°C | AC at 70°C | |||||
| No. xmm2 | mm | mm | mm | ohm/km | ohm/km | mH/Km |
| N2XH (Single Core Power Cables with Mica Glass Tape) | ||||||
| 1 x 1.5 RE | 0.7 | 1.4 | 6.2 | 12.1 | 15.4 | 0.458 |
| 1 x 1.5 RM | 0.7 | 1.4 | 6.4 | 12.1 | 15.4 | 0.458 |
| 1 x 2.5 RE | 0.7 | 1.4 | 6.6 | 7.41 | 9.45 | 0.439 |
| 1 x 2.5 RM | 0.7 | 1.4 | 6.8 | 7.41 | 9.45 | 0.439 |
| 1 x 4 RE | 0.7 | 1.4 | 7.0 | 4.61 | 5.88 | 0.420 |
| 1 x 4 RM | 0.7 | 1.4 | 7.3 | 4.61 | 5.88 | 0.420 |
| 1 x 6 RE | 0.7 | 1.4 | 7.5 | 3.08 | 3.93 | 0.394 |
| 1 x 6 RM | 0.7 | 1.4 | 8.0 | 3.08 | 3.93 | 0.394 |
| 1 x 10 RE | 0.7 | 1.4 | 8.3 | 1.83 | 2.33 | 0.366 |
| 1 x 10 RM | 0.7 | 1.4 | 8.8 | 1.83 | 2.33 | 0.366 |
| 1 x 16 RM | 0.7 | 1.4 | 10.0 | 1.15 | 1.47 | 0.341 |
| 1 x 25 RM | 0.9 | 1.4 | 12.0 | 0.727 | 0.923 | 0.325 |
| 1 x 35 RM | 0.9 | 1.4 | 13.0 | 0.524 | 0.668 | 0.311 |
| 1 x 50 RM | 1.0 | 1.4 | 14.5 | 0.387 | 0.494 | 0.302 |
| 1 x 70 RM | 1.1 | 1.5 | 16.5 | 0.268 | 0.342 | 0.291 |
| 1 x 95 RM | 1.1 | 1.5 | 18.5 | 0.193 | 0.247 | 0.284 |
| 1 x 120 RM | 1.2 | 1.6 | 20.5 | 0.153 | 0.196 | 0.279 |
|
|
