| الـ MOQ: | 200 م |
| السعر: | USD 1-299 Per Meter |
| العبوة القياسية: | طبل الحديد أو طبل خشبي كامل |
| فترة التسليم: | 8-15 يوما |
| طريقة الدفع: | L / C ، T / T |
| قدرة التوريد: | 100 كم شهريا |

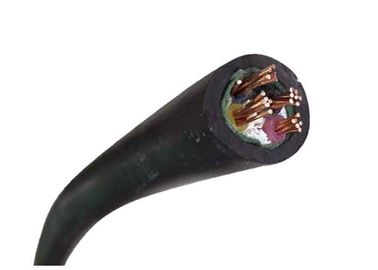

Muti-Cores XLPE Insulated Electrical Power Cable CE IEC KEMA Certification
Applications: These Heavy Duty power cables are suitable for use in generating stations, sub-stations, distribution systems, house service connections, street lighting, industrial installation and operating conditions and tensile stresses when armoured, and can be laid in water or buried direct under the ground, even on steep slopes. They can also be installed indoors, in air or in cable ducts..
Constructions
Conductor: Plain Circular Stranded Copper Conductor, conforms to IEC 60228 class 2
Insulation: PVC/A
Inner Covering: PVC
Armoring: Aluminium Wire Armor
Sheath: PVC/ST2 to IEC 60502, black
Note: Insulation color as per standards or at request
Technical data: Rated voltage:0.6/1kV Low Voltage
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor
Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS, DIN, VDE and ICEA upon request
Installation
1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installation, the cable should with stand voltage test for 15min. 3.5kv D.C.
Technical parameter:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
|
|
