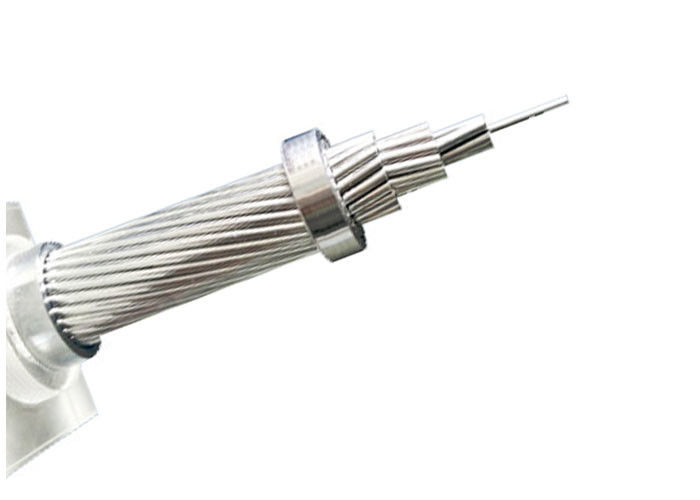

Overhead conductor Aluminium stranded conductors steel-reinforced (ACSR)
Applications
Steel-cored aluminium strands are made of aluminium wires and steel wires, which are suitable for AC overhead transmission lines.
Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
| Code Name |
Nominal | Number/Diameter | Calculated Area mm2 | Diameter mm | Resistance ≤Ω/km |
Force KN |
Weight kg/km |
|||
| AWG or MCM | Al mm |
Steel mm |
Al | Steel | Total | |||||
| Turkey | 6 | 6/1.68 | 1/1.68 | 13.29 | 2.19 | 15.48 | 5.04 | 2.1586 | 5.24 | 54 |
| Swan | 4 | 3/2.12 | 1/2.12 | 21.16 | 3.55 | 24.71 | 6.36 | 1.3557 | 8.32 | 85 |
| Swanate | 4 | 7/1.96 | 1/2.61 | 21.16 | 5.35 | 26.51 | 6.53 | 1.3557 | 10.53 | 100 |
| Sparrow | 2 | 6/2.67 | 1/2.67 | 33.61 | 5.61 | 39.22 | 8.01 | 0.8535 | 12.70 | 136 |
| Sparate | 2 | 7/2.47 | 1/3.30 | 33.61 | 8.52 | 42.13 | 8.24 | 0.8535 | 16.11 | 159 |
| Robin | 1 | 6/3.00 | 1/3.00 | 42.39 | 7.10 | 49.49 | 9.00 | 0.6767 | 15.85 | 171 |
| Raven | 1/0 | 6/3.78 | 1/3.37 | 53.48 | 8.90 | 62.38 | 10.11 | 0.5364 | 19.32 | 216 |
| Quail | 2/0 | 6/3.78 | 1/3.78 | 67.42 | 11.23 | 78.65 | 11.34 | 0.4255 | 23.62 | 273 |
| Pigeon | 3/0 | 6/4.25 | 1/4.25 | 85.03 | 14.19 | 99.22 | 12.75 | 0.3373 | 29.41 | 343 |
| Penguin | 4/0 | 6/477 | 1/4.77 | 107.23 | 17.87 | 125.10 | 14.31 | 0.2675 | 37.06 | 433 |
| Waxwing | 266.8 | 18/3.09 | 1/3.09 | 135.16 | 7.48 | 142.64 | 15.45 | 0.2133 | 30.27 | 431 |
| Partridge | 266.8 | 26/2.57 | 7/2.00 | 135.16 | 22.00 | 157.16 | 16.28 | 0.2143 | 50.29 | 546 |
| Ostrich | 300 | 26/2.73 | 7/2.12 | 152.00 | 24.71 | 176.71 | 17.28 | 0.1906 | 56.52 | 614 |
| Merlin | 336.4 | 18/3.47 | 1/3.47 | 170.45 | 9.48 | 179.93 | 17.5 | 0.1691 | 38.23 | 544 |
| Linnet | 336.4 | 26/2.89 | 7/2.25 | 170.45 | 21.81 | 198.26 | 18.31 | 0.1699 | 62.71 | 689 |
| Oriole | 336.4 | 30/2.69 | 7/2.69 | 170.45 | 39.81 | 210.26 | 18.83 | 0.1704 | 77.27 | 784 |
| Chickadee | 397.5 | 18/3.77 | 1/3.77 | 201.42 | 11.16 | 212.58 | 18.85 | 0.1431 | 43.99 | 642 |
| Brant | 397.5 | 24/3.27 | 7/2.18 | 201.42 | 26.13 | 227.55 | 19.61 | 0.1438 | 64.69 | 762 |
| Ibis | 397.5 | 26/3.14 | 7/2.44 | 201.42 | 32.77 | 234.19 | 19.88 | 0.1438 | 72.11 | 814 |
| Lark | 397.5 | 30/2.92 | 7/2.92 | 201.42 | 46.97 | 248.39 | 20.44 | 0.1442 | 88.69 | 927 |
| Pelican | 477 | 18/4.14 | 1/4.14 | 241.68 | 13.42 | 255.10 | 20.70 | 0.1193 | 52.16 | 771 |
| Flicker | 477 | 24/3.58 | 7/2.39 | 241.68 | 31.29 | 272.97 | 21.49 | 0.1199 | 76.66 | 915 |
| Hawk | 477 | 26/3.44 | 7/2.67 | 241.68 | 39.42 | 281.10 | 21.79 | 0.1199 | 86.65 | 978 |
| Hen | 477 | 30/3.20 | 7/3.20 | 241.68 | 56.39 | 298.07 | 22.40 | 0.1201 | 105.34 | 1112 |
| Osprey | 556.5 | 18/4.47 | 1/4.47 | 282.00 | 15.68 | 297.68 | 22.35 | 0.1022 | 60.88 | 899 |
| Parakeet | 556.5 | 24/3.87 | 7/2.58 | 282.00 | 36.58 | 318.58 | 23.22 | 0.1027 | 88.22 | 1067 |
| Dove | 556.5 | 26/3.72 | 7/2.89 | 282.00 | 45.94 | 327.94 | 23.55 | 0.1027 | 101.03 | 1140 |
