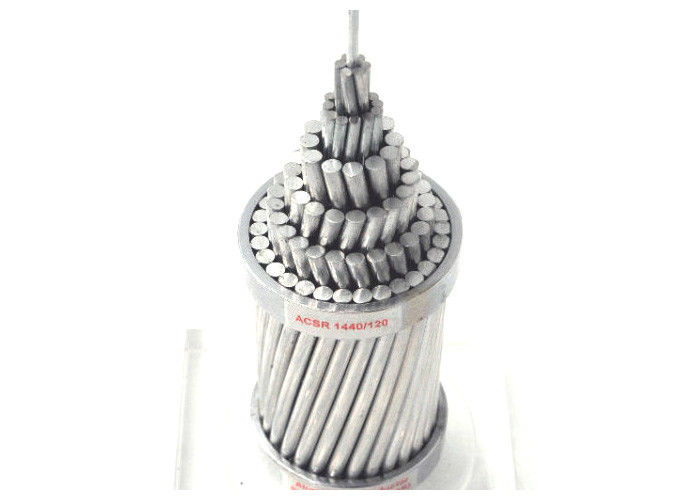

Power Transmission Overhead Bare Conductor Aluminum Conductor Steel Wire Reinforced
Applications
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
| Code Name |
Nominal | Number/Diameter | Calculated Area mm2 | Diameter mm | Resistance ≤Ω/km |
Force KN |
Weight kg/km |
|||
| AWG or MCM | Al mm |
Steel mm |
Al | Steel | Total | |||||
| Turkey | 6 | 6/1.68 | 1/1.68 | 13.29 | 2.19 | 15.48 | 5.04 | 2.1586 | 5.24 | 54 |
| Swan | 4 | 3/2.12 | 1/2.12 | 21.16 | 3.55 | 24.71 | 6.36 | 1.3557 | 8.32 | 85 |
| Swanate | 4 | 7/1.96 | 1/2.61 | 21.16 | 5.35 | 26.51 | 6.53 | 1.3557 | 10.53 | 100 |
| Sparrow | 2 | 6/2.67 | 1/2.67 | 33.61 | 5.61 | 39.22 | 8.01 | 0.8535 | 12.70 | 136 |
| Sparate | 2 | 7/2.47 | 1/3.30 | 33.61 | 8.52 | 42.13 | 8.24 | 0.8535 | 16.11 | 159 |
| Robin | 1 | 6/3.00 | 1/3.00 | 42.39 | 7.10 | 49.49 | 9.00 | 0.6767 | 15.85 | 171 |
| Raven | 1/0 | 6/3.78 | 1/3.37 | 53.48 | 8.90 | 62.38 | 10.11 | 0.5364 | 19.32 | 216 |
| Quail | 2/0 | 6/3.78 | 1/3.78 | 67.42 | 11.23 | 78.65 | 11.34 | 0.4255 | 23.62 | 273 |
| Pigeon | 3/0 | 6/4.25 | 1/4.25 | 85.03 | 14.19 | 99.22 | 12.75 | 0.3373 | 29.41 | 343 |
| Penguin | 4/0 | 6/477 | 1/4.77 | 107.23 | 17.87 | 125.10 | 14.31 | 0.2675 | 37.06 | 433 |
| Waxwing | 266.8 | 18/3.09 | 1/3.09 | 135.16 | 7.48 | 142.64 | 15.45 | 0.2133 | 30.27 | 431 |
| Partridge | 266.8 | 26/2.57 | 7/2.00 | 135.16 | 22.00 | 157.16 | 16.28 | 0.2143 | 50.29 | 546 |
| Ostrich | 300 | 26/2.73 | 7/2.12 | 152.00 | 24.71 | 176.71 | 17.28 | 0.1906 | 56.52 | 614 |
| Merlin | 336.4 | 18/3.47 | 1/3.47 | 170.45 | 9.48 | 179.93 | 17.5 | 0.1691 | 38.23 | 544 |
| Linnet | 336.4 | 26/2.89 | 7/2.25 | 170.45 | 21.81 | 198.26 | 18.31 | 0.1699 | 62.71 | 689 |
| Oriole | 336.4 | 30/2.69 | 7/2.69 | 170.45 | 39.81 | 210.26 | 18.83 | 0.1704 | 77.27 | 784 |
| Chickadee | 397.5 | 18/3.77 | 1/3.77 | 201.42 | 11.16 | 212.58 | 18.85 | 0.1431 | 43.99 | 642 |
| Brant | 397.5 | 24/3.27 | 7/2.18 | 201.42 | 26.13 | 227.55 | 19.61 | 0.1438 | 64.69 | 762 |
| Ibis | 397.5 | 26/3.14 | 7/2.44 | 201.42 | 32.77 | 234.19 | 19.88 | 0.1438 | 72.11 | 814 |
| Lark | 397.5 | 30/2.92 | 7/2.92 | 201.42 | 46.97 | 248.39 | 20.44 | 0.1442 | 88.69 | 927 |
| Pelican | 477 | 18/4.14 | 1/4.14 | 241.68 | 13.42 | 255.10 | 20.70 | 0.1193 | 52.16 | 771 |
| Flicker | 477 | 24/3.58 | 7/2.39 | 241.68 | 31.29 | 272.97 | 21.49 | 0.1199 | 76.66 | 915 |
| Hawk | 477 | 26/3.44 | 7/2.67 | 241.68 | 39.42 | 281.10 | 21.79 | 0.1199 | 86.65 | 978 |
| Hen | 477 | 30/3.20 | 7/3.20 | 241.68 | 56.39 | 298.07 | 22.40 | 0.1201 | 105.34 | 1112 |
| Osprey | 556.5 | 18/4.47 | 1/4.47 | 282.00 | 15.68 | 297.68 | 22.35 | 0.1022 | 60.88 | 899 |
| Parakeet | 556.5 | 24/3.87 | 7/2.58 | 282.00 | 36.58 | 318.58 | 23.22 | 0.1027 | 88.22 | 1067 |
| Dove | 556.5 | 26/3.72 | 7/2.89 | 282.00 | 45.94 | 327.94 | 23.55 | 0.1027 | 101.03 | 1140 |
