| الـ MOQ: | 0.5 كيلو متر | |
| العبوة القياسية: | طبل خشبي أو طبل الصلب | |
| فترة التسليم: | طريقة الدفع: | L/C, D/A, D/P, T/T, إتحاد غربيّ, MoneyGram |
| قدرة التوريد: | 1000km شهريا |

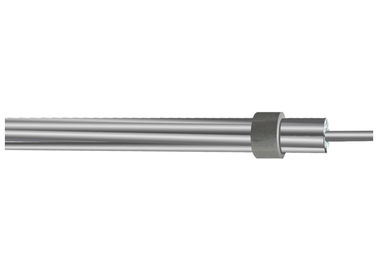

Stay Wire Communication Cables Bare Conductor Bare Aluminum Wire 25sq mm - 120sq mm
Application: Stay wire is used in communication cables,overhead power lines and the fixed obdects, such as tethered. Stay wire commonly be used in the power sector .
Conductor: steel
The Structure and the Specifications of the Stay wire
| Cross | Structure | Actual | Overall | Force | Kg/Km | ||||
| Section | No/Diameter | Aera | Diameter | Tensile Strength | |||||
| mm2 | n/mm | mm2 | mm | 1100 | 1250 | 1400 | 1550 | 1700 | |
| 25 | 7/2.2 | 26.6 | 6.6 | 26300 | 29900 | 33500 | 37100 | 40700 | 228 |
| 35 | 7/2.6 | 37.2 | 7.8 | 36800 | 41800 | 46800 | 51800 | 56800 | 318 |
| 50 | 7/3.0 | 49.5 | 9 | 49000 | 55600 | 62300 | 69000 | 75700 | 424 |
| 70 | 19/2.2 | 72.2 | 11 | 71500 | 81200 | 91000 | 100000 | 110000 | 615 |
| 95 | 19/2.5 | 93.2 | 12.5 | 92300 | 105000 | 117000 | 130000 | 142000 | 795 |
| 120 | 19/2.8 | 116.9 | 14 | 116000 | 131000 | 147000 | 163000 | 179000 | 995 |
|
|
