| الـ MOQ: | 0.5 كيلو متر |
| السعر: | 0.10-20.99USD/m |
| العبوة القياسية: | طبل خشبي أو طبل الصلب |
| فترة التسليم: | 5 أيام أو أكثر |
| طريقة الدفع: | L/C, D/A, D/P, T/T, إتحاد غربيّ, MoneyGram |

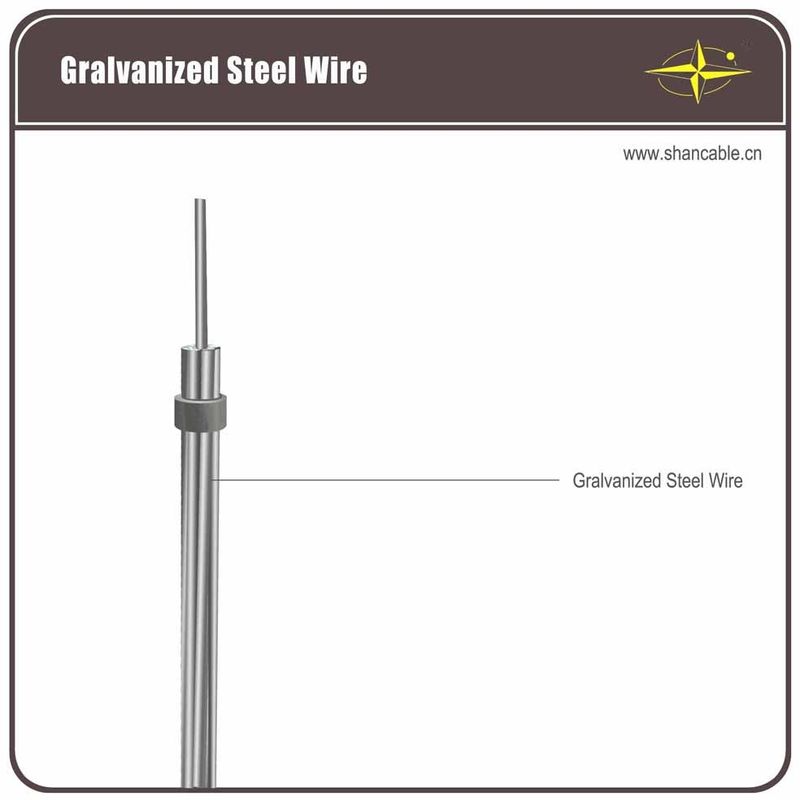

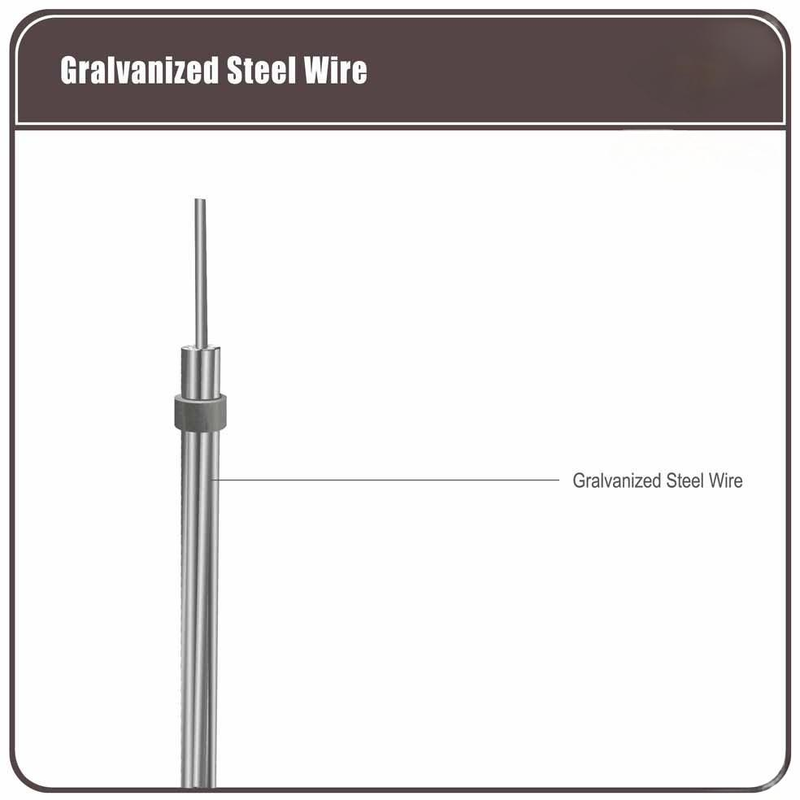

Galvanized Steel Wire Bare Conductor , Acsr Rail Conductor ASTM A475 Certification
The product galvanized steel wire (GSW) is used for the cord of ACSR (Aluminum Conductor Steel Reinforced) conductor. Being the leading enterprise of this industry, the GSW manufactured by Shenghua has excellent mechanical property, best quality of coating and nice condition of surface.
| Diameter(mm) | Tensile Strength(Mpa) | Weight of Zinc(g/m2) | ||||||
| 1.24~2.25 | 1340~1620 | 185~215 | ||||||
| 2.25~3.00 | 1310~1590 | 230 | ||||||
| 3.00~3.50 | 1290~1550 | 245 | ||||||
| 3.50~4.25 | 1290~1520 | 260 | ||||||
| 4.25~4.75 | 1290~1520 | 275 | ||||||
| 4.75~5.50 | 1290~1520 | 290 | ||||||
| Intensity Level | Wire Diameter | Min. Tensile | Min. Stress With 1% | Min. Extension | Min. Number of 360° | Diameter of Testing | ||
| Strength | Extension | Percentage When L=250 | twists | Mandril | ||||
| mm | mpa | mpa | % | multiple | ||||
| >1.24~2.25 | 1340 | 1170 | 3.0 | 16 | 1 | |||
| >2.25~2.75 | 1310 | 1140 | 3.0 | 16 | 1 | |||
| >2.75~3.00 | 1310 | 1140 | 3.5 | 16 | 1 | |||
| General | >3.00~3.50 | 1290 | 1100 | 3.5 | 14 | 1 | ||
| >3.50~4.25 | 1290 | 1100 | 4.0 | 12 | 1 | |||
| >4.25~4.75 | 1290 | 1100 | 4.0 | 12 | 1 | |||
| >4.75~5.50 | 1290 | 1100 | 4.0 | 12 | 1 | |||
| >1.24~2.25 | 1450 | 1310 | 2.5 | 16 | 3 | |||
| >2.25~2.75 | 1410 | 1280 | 2.5 | 16 | 3 | |||
| >2.75~3.00 | 1410 | 1280 | 3.0 | 16 | 4 | |||
| High | >3.00~3.50 | 1410 | 1240 | 3.0 | 14 | 4 | ||
| >3.50~4.25 | 1380 | 1170 | 3.0 | 12 | 4 | |||
| >4.25~4.75 | 1380 | 1170 | 3.0 | 12 | 4 | |||
| >4.75~5.50 | 1380 | 1170 | 3.0 | 12 | 4 | |||
| >1.24~2.25 | 1620 | 1450 | 2.0 | 14 | 4 | |||
| >2.25~2.75 | 1590 | 1410 | 2.0 | 14 | 4 | |||
| >2.75~3.00 | 1590 | 1410 | 2.5 | 12 | 5 | |||
| Very High | >3.00~3.50 | 1550 | 1380 | 2.5 | 12 | 5 | ||
| >3.50~4.25 | 1520 | 1340 | 2.5 | 10 | 5 | |||
| >4.25~4.75 | 1520 | 1340 | 2.5 | 10 | 5 | |||
| >4.75~5.50 | 1520 | 1270 | 2.5 | 10 | 5 | |||
|
|
ASTM A475 | |||||||||
| Number of Wires | Approx. Strand Dia. | Siemens | High | Extra High | Approx. Weight | |||||
| /Dia. | Martin Grade | Strength Grade | Strength Grade | |||||||
| Inch | mm | kN | kN | kN | kg/km | |||||
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 | ||||
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.040 | 29.981 | 174 | ||||
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 | ||||
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 | ||||
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 | ||||
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 | ||||
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.140 | 49 | ||||
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 | ||||
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 | ||||
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 | ||||
| 7/1.83 | 7/32 | 5.56 | 11.387 | 17.126 | 24.020 | 145 | ||||
| 7/2.03 | 1/4 | 6.35 | 14.012 | 21.129 | 29.581 | 181 | ||||
| 7/2.36 | 9/32 | 7.14 | 18.905 | 28.469 | 39.812 | 243 | ||||
| 7/2.64 | 5/16 | 7.94 | 23.798 | 35.586 | 49.820 | 305 | ||||
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 | ||||
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.040 | 68.503 | 407 | ||||
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 | ||||
| 7/4.19 | 1/2 | 12.70 | 53.823 | 83.627 | 119.657 | 768 | ||||
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 | ||||
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 | ||||
| 19/2.54 | 1/2 | 12.70 | 56.492 | 84.961 | 118.768 | 751 | ||||
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 | ||||
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 | ||||
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 | ||||
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 | ||||
| 19/5.08 | 1 | 25.40 | 209.066 | 325.610 | 464.839 | 2384 | ||||
| 37/3.63 | 1 | 25.40 | 205.508 | 319.827 | 456.832 | 3061 | ||||
| 37/4.09 | 11/8 | 28.58 | 262.000 | 407.457 | 581.827 | 4006 | ||||
| 37/4.55 | 11/4 | 31.75 | 324.720 | 505.318 | 721.502 | 4833 |
|
|||
| BS 183:1972 | ||||||||||
| Number of | Approx. | Minimum Breaking Load of Strand | Approx. Weight | |||||||
| Wires/Dia. | Strand Dia | Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade 1150 | Grade 1300 | ||
| mm | kN | kN | kN | kN | kN | kN | kN | kg/km | ||
| 3/1.80 | 3.9 | 2.65 | 3.66 | - | - | - | - | - | 60 | |
| 3/2.65 | 5.7 | 5.80 | 7.95 | - | - | - | - | - | 130 | |
| 3/3.25 | 7.0 | 8.70 | 11.95 | - | - | - | - | - | 195 | |
| 3/4.00 | 8.6 | 13.20 | 18.10 | - | - | - | - | - | 295 | |
| 4/1.80 | 4.4 | 3.55 | 4.90 | - | - | - | - | - | 80 | |
| 4/2.65 | 6.4 | 7.70 | 10.60 | - | - | - | - | - | 172 | |
| 4/3.25 | 7.9 | 11.60 | 15.90 | - | - | - | - | - | 260 | |
| 4/4.00 | 9.7 | 17.60 | 24.10 | 35.20 | - | - | - | - | 390 | |
| 5/1.50 | 4.1 | 3.10 | 4.24 | 6.18 | - | - | - | - | 69 | |
| 5/1.80 | 4.9 | 4.45 | 6.10 | 8.90 | - | - | - | - | 95 | |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.30 | - | - | - | - | 220 | |
| 5/3.25 | 8.8 | 14.50 | 19.90 | 29.00 | - | - | - | - | 320 | |
| 5/4.00 | 10.8 | 22.00 | 30.15 | 43.95 | - | - | - | - | 490 | |
| 7/0.56 | 1.7 | 0.60 | 0.83 | 1.20 | - | 1.70 | 1.98 | 2.24 | 14 | |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | - | 2.75 | 3.19 | 3.60 | 28 | |
| 7/0.85 | 2.6 | 1.39 | 1.90 | 2.80 | - | 3.95 | 4.57 | 5.15 | 31 | |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3.1 | - | 4.45 | 5.12 | 5.80 | 35 | |
| 7/1.00 | 3.0 | 1.92 | 2.64 | 3.85 | - | 5.50 | 6.32 | 7.15 | 43 | |
| 7/1.25 | 3.8 | 3.01 | 4.10 | 6.00 | - | 8.55 | 9.88 | 11.15 | 67 | |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14.00 | 84 | |
| 7/RS* | 4.3 | 3.85 | 5.28 | 7.70 | 9.35 | 11.00 | 12.65 | 14.30 | 86 | |
| 7/1.60 | 4.8 | 4.90 | 6.75 | 9.85 | 11.95 | 14.10 | 16.20 | 18.30 | 110 | |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.80 | 20.50 | 23.20 | 140 | |
| 7/2.00 | 6.0 | 7.70 | 10.55 | 15.40 | - | 22.00 | 25.30 | 28.60 | 170 | |
| 7/2.36 | 7.1 | 10.70 | 14.70 | 21.40 | - | 30.60 | 35.20 | 39.80 | 240 | |
| 7/2.65 | 8.0 | 13.50 | 18.50 | 27.00 | - | 38.60 | 44.40 | 50.20 | 300 | |
| 7/3.00 | 9.0 | 17.30 | 23.75 | 34.65 | - | 49.50 | 56.90 | 64.30 | 392 | |
| 7/3.15 | 9.5 | 19.10 | 26.20 | 38.20 | - | 54.55 | 62.75 | 70.90 | 430 | |
| 7/3.25 | 9.8 | 20.30 | 27.85 | 40.65 | - | 58.05 | 66.80 | 75.50 | 460 | |
| 7/3.65 | 11.0 | 25.60 | 35.15 | 51.25 | - | 73.25 | 84.20 | 95.20 | 570 | |
| 7/4.00 | 12.0 | 30.90 | 42.20 | 61.60 | - | 88.00 | 101.0 | 114.00 | 690 | |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.50 | - | 99.30 | 114.0 | 129.00 | 780 | |
| 7/4.75 | 14.0 | 43.40 | 59.45 | 86.80 | - | 124.0 | 142.7 | 161.3 | 970 | |
| 19/1.00 | 5.0 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.40 | 120 | |
| 19/1.25 | 63 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 | |
| 19/1.40 | 7.0 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 | |
| 19/1.60 | 8.0 | 13.37 | 18.35 | 26.75 | - | 38.20 | 43.93 | 49.66 | 300 | |
| 19/2.00 | 10.0 | 20.90 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.60 | 470 | |
| 19/2.50 | 12.5 | 32.65 | 44.80 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 | |
| 19/3.00 | 15.0 | 47.00 | 64.50 | 94.00 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 | |
| 19/3.55 | 17.8 | 65.80 | 90.27 | 131.6 | 159.9 | 188.0 | 216.3 | 244.5 | 1470 | |
| 19/4.00 | 20.0 | 83.55 | 114.6 | 167.1 | 203.0 | 238.7 | 274.6 | 310.4 | 1870 | |
| 19/4.75 | 23.8 | 117.85 | 161.6 | 235.7 | 286.0 | 336.7 | 387.2 | 437.7 | 2630 | |
|
|
