| الـ MOQ: | 0.5 كيلو متر |
| السعر: | 0.10-30.99USD/m |
| العبوة القياسية: | طبل خشبي أو طبل الصلب |
| فترة التسليم: | 10 أيام أو أكثر |
| طريقة الدفع: | L/C, D/A, D/P, T/T, إتحاد غربيّ, MoneyGram |
| قدرة التوريد: | 1000km شهريا |

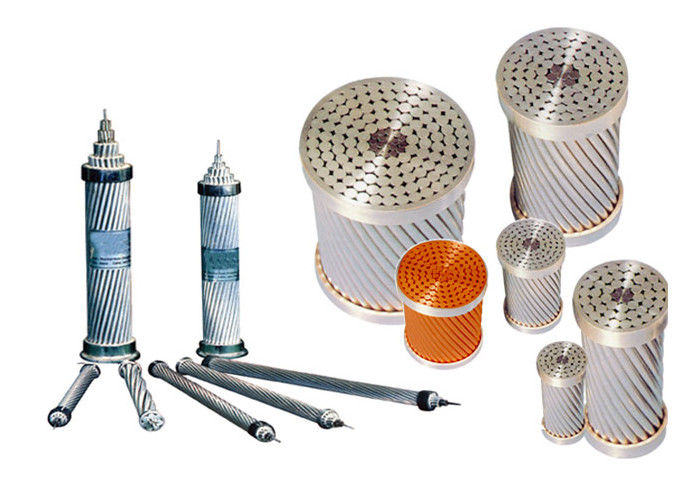

Stranded ACSR Aluminum Conductor Steel Reinforced Turky Code 5.04mm Overall Diameter
Aluminum alloy wires, concentrically stranded with steel core. Core wire for ACSR is available with class A, B, or C galvanizing; "aluminized" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Application:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Standards:
All the products can perfectly meet requests of different standards. we can design and manufacture special cables according to the required standards of customers, such as: GB, IEC, BS, ASTM, JIS, DIN CRS.
| ACSR | ||||||||||||
| Total Area | Stranding and Wire | Approx | Weight | Nominal | Max. D.C. | |||||||
| Code Name | Nominal | Al. | St. | Total | Diameter | Overall | Breaking | Resistance at | ||||
| AWG or | Al. | St. | Diameter | Al. | St. | Total | Load | 20℃ | ||||
| MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | kN | Ω/km | |
| Turkey | 6 | 13.29 | 2.19 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 37 | 17 | 54 | 5.24 | 2.1586 |
| Swan | 4 | 21.16 | 3.55 | 24.71 | 3/2.12 | 1/2.12 | 6.36 | 58 | 27 | 85 | 8.32 | 1.3557 |
| Swanate | 4 | 21.16 | 5.35 | 26.51 | 7/1.96 | 1/2.61 | 6.53 | 58 | 42 | 100 | 10.53 | 1.3557 |
| Sparrow | 2 | 33.61 | 5.61 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 92 | 44 | 136 | 12.70 | 0.8535 |
| Sparate | 2 | 33.61 | 8.52 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 92 | 67 | 159 | 16.11 | 0.8535 |
| Robin | 1 | 42.39 | 7.10 | 49.49 | 6/3.00 | 1/3.00 | 9.00 | 116 | 55 | 171 | 15.85 | 0.6767 |
| Raven | 1/0 | 53.48 | 8.90 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 147 | 69 | 216 | 19.32 | 0.5364 |
| Quail | 2/0 | 67.42 | 11.23 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 185 | 88 | 273 | 23.62 | 0.4255 |
| Pigeon | 3/0 | 85.03 | 14.19 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 233 | 110 | 343 | 29.41 | 0.3373 |
| Penguin | 4/0 | 107.23 | 17.87 | 125.10 | 6/4.77 | 1/4.77 | 14.31 | 294 | 139 | 433 | 37.06 | 0.2675 |
| Waxwing | 266.8 | 135.16 | 7.48 | 142.64 | 18/3.09 | 1/3.09 | 15.45 | 373 | 58 | 431 | 30.27 | 0.2133 |
| Partridge | 266.8 | 135.16 | 22.00 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 374 | 172 | 546 | 50.29 | 0.2143 |
| Ostrich | 300 | 152.00 | 24.71 | 176.71 | 26/2.73 | 7/2.12 | 17.28 | 421 | 193 | 614 | 56.52 | 0.1906 |
| Merlin | 336.4 | 170.45 | 9.48 | 179.93 | 18/3.47 | 1/3.47 | 17.50 | 470 | 74 | 544 | 38.23 | 0.1691 |
| Linnet | 336.4 | 170.45 | 27.81 | 198.23 | 26/2.89 | 7/2.25 | 18.31 | 472 | 217 | 689 | 62.71 | 0.1699 |
| Oriole | 336.4 | 170.45 | 39.81 | 21.026 | 30/2.69 | 7/2.69 | 18.83 | 473 | 311 | 784 | 77.27 | 0.1704 |
| Chickadee | 397.5 | 201.42 | 11.16 | 212.58 | 18/3.77 | 1/3.77 | 18.85 | 555 | 87 | 642 | 43.99 | 0.1431 |
| Brant | 397.5 | 201.42 | 26.13 | 227.55 | 24/3.27 | 7/2.18 | 19.61 | 558 | 204 | 762 | 64.69 | 0.1438 |
| Ibis | 397.5 | 201.42 | 32.77 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 558 | 256 | 814 | 72.11 | 0.1438 |
| Lark | 397.5 | 201.42 | 46.97 | 248.39 | 30/2.92 | 7/2.92 | 2044 | 560 | 367 | 927 | 88.69 | 0.1442 |
| Pelican | 477 | 241.68 | 13.42 | 255.10 | 18/4.14 | 1/4.14 | 2070 | 666 | 105 | 771 | 52.16 | 0.1193 |
| Flicker | 477 | 241.68 | 31.29 | 272.97 | 24/3.58 | 7/2.39 | 21.49 | 670 | 245 | 915 | 76.66 | 0.1199 |
| Hawk | 477 | 241.68 | 39.42 | 281.10 | 26/3.44 | 7/2.67 | 21.79 | 670 | 308 | 978 | 86.65 | 0.1199 |
| Hen | 477 | 241.68 | 56.39 | 298.07 | 30/3.20 | 7/3.20 | 22.40 | 671 | 441 | 1112 | 105.34 | 0.1201 |
| Osprey | 556.5 | 282.00 | 15.68 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 777 | 122 | 899 | 60.88 | 0.1022 |
| Parakeet | 556.5 | 282.00 | 36.58 | 318.58 | 24/3.87 | 7/2.58 | 23.22 | 781 | 286 | 1067 | 88.22 | 0.1027 |
| Dove | 556.5 | 282.00 | 45.94 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 781 | 359 | 1140 | 101.03 | 0.1027 |
| Eagle | 556.5 | 282.00 | 65.81 | 347.81 | 30/3.46 | 7/3.46 | 24.21 | 783 | 515 | 1298 | 122.92 | 0.1030 |
| Peacock | 605 | 306.58 | 39.74 | 346.32 | 24/4.03 | 7/2.69 | 24.20 | 849 | 311 | 1160 | 95.88 | 0.0945 |
| Squab | 605 | 306.58 | 49.94 | 356.52 | 26/3.87 | 7/3.01 | 24.51 | 850 | 390 | 1240 | 108.14 | 0.0945 |
| Wood Duck | 605 | 306.58 | 71.55 | 378.13 | 30/3.61 | 7/3.61 | 25.25 | 851 | 560 | 1411 | 128.84 | 0.0947 |
| Teal | 605 | 306.58 | 69.87 | 376.45 | 30/3.61 | 19/2.16 | 25.24 | 851 | 548 | 1399 | 133.59 | 0.0947 |
| Kingbird | 636 | 322.26 | 17.90 | 340.16 | 18/4.78 | 1/4.78 | 23.88 | 889 | 139 | 1028 | 69.55 | 0.08945 |
| Rook | 636 | 322.26 | 41.81 | 364.07 | 24/4.14 | 7/2.76 | 24.84 | 893 | 326 | 1219 | 100.83 | 0.08989 |
| Grosbeak | 636 | 322.26 | 52.45 | 374.71 | 26/3.97 | 7/3.09 | 25.15 | 893 | 409 | 1302 | 111.80 | 0.08989 |
| Scoter | 636 | 322.26 | 75.22 | 397.48 | 30/3.70 | 7/3.70 | 25.88 | 895 | 589 | 1484 | 135.44 | 0.09011 |
| Egret | 636 | 322.26 | 73.55 | 395.81 | 30/3.70 | 19/2.22 | 25.90 | 894 | 576 | 1470 | 140.30 | 0.09011 |
| Swift | 636 | 322.26 | 8.96 | 331.22 | 36/3.38 | 1/3.38 | 23.62 | 888 | 70 | 958 | 60.52 | 0.08945 |
| Flamingo | 666.6 | 337.34 | 43.81 | 381.55 | 24/4.23 | 7/2.82 | 25.40 | 936 | 342 | 1278 | 105.66 | 0.08577 |
| Gannet | 666.6 | 337.34 | 55.03 | 392.77 | 26/4.07 | 7/3.16 | 25.76 | 936 | 429 | 1365 | 117.33 | 0.08577 |
| Stilt | 715.5 | 362.58 | 46.97 | 409.55 | 24/4.39 | 7/2.92 | 26.31 | 1005 | 367 | 1372 | 113.35 | 0.07989 |
| Starling | 715.5 | 362.58 | 59.03 | 421.61 | 26/4.21 | 7/3.28 | 26.68 | 1005 | 461 | 1466 | 125.91 | 0.07989 |
| Redwing | 715.5 | 362.58 | 82.58 | 445.16 | 30/3.92 | 19/2.35 | 27.43 | 1006 | 647 | 1653 | 153.94 | 0.08009 |
| Tern | 795 | 402.84 | 27.87 | 430.71 | 45/3.38 | 7/2.25 | 27.03 | 1116 | 217 | 1333 | 97.37 | 0.07191 |
| Condor | 795 | 402.84 | 52.19 | 455.03 | 54/3.08 | 7/3.08 | 27.72 | 1116 | 408 | 1524 | 124.45 | 0.07191 |
| Cuckoo | 795 | 402.84 | 52.19 | 455.03 | 24/4.62 | 7/3.08 | 27.74 | 1116 | 408 | 1524 | 123.94 | 0.07191 |
| Drake | 795 | 402.84 | 65.61 | 468.35 | 26/4.44 | 7/3.45 | 28.11 | 1116 | 512 | 1628 | 139.92 | 0.07191 |
|
|
||||||||||||
| Total Area | Stranding and Wire | Approx | Weight | Nominal | Max. D.C. | |||||||
| Code Name | Nominal | Al. | St. | Total | Diameter | Overall | Breaking | Resistance at | ||||
| AWG or | Al. | St. | Diameter | Al. | St. | Total | Load | 20℃ | ||||
| MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | kN | Ω/km | |
| Coot | 795 | 402.84 | 11.16 | 414.00 | 36/3.77 | 1/3.77 | 26.41 | 1110 | 88 | 1198 | 74.34 | 0.07156 |
| Mallard | 795 | 402.84 | 91.87 | 494.71 | 30/4.14 | 19/2.48 | 28.96 | 1119 | 719 | 1838 | 171.18 | 0.07208 |
| Ruddy | 900 | 456.06 | 34.54 | 487.60 | 45/3.59 | 7/2.40 | 28.73 | 1263 | 247 | 1510 | 108.96 | 0.06351 |
| Canary | 900 | 456.06 | 59.10 | 515.16 | 54/3.28 | 7/3.28 | 29.52 | 1263 | 461 | 1724 | 140.95 | 0.06351 |
| Rail | 954 | 483.42 | 33.42 | 816.84 | 45/3.70 | 7/2.47 | 29.61 | 1339 | 262 | 1601 | 115.63 | 0.05992 |
| Catbird | 954 | 483.42 | 13.42 | 496.84 | 36/4.14 | 1/4.14 | 28.95 | 1333 | 105 | 1438 | 87.66 | 0.05962 |
| Cardinal | 954 | 483.42 | 62.65 | 546.07 | 54/3.38 | 7/3.38 | 30.42 | 1339 | 490 | 1829 | 149.36 | 0.05992 |
| Ortlan | 1033.5 | 523.68 | 36.19 | 559.87 | 45/3.85 | 7/2.57 | 30.81 | 1451 | 283 | 1734 | 123.10 | 0.05531 |
| Tanger | 1033.5 | 523.68 | 14.51 | 538.195 | 36/4.30 | 1/4.30 | 30.12 | 1443 | 113 | 1556 | 94.93 | 0.05504 |
| Curlew | 1033.5 | 523.68 | 67.87 | 91.55 | 54/3.52 | 7/3.52 | 31.68 | 1451 | 530 | 1981 | 161.80 | 0.05531 |
| Bluejay | 1113 | 563.93 | 39.03 | 602.96 | 45/4.00 | 7/2.66 | 31.98 | 1563 | 385 | 1868 | 132.63 | 0.05136 |
| Finch | 1113 | 563.93 | 71.55 | 635.48 | 54/3.65 | 19/2.19 | 32.85 | 1570 | 580 | 2130 | 174.41 | 0.05161 |
| Bunting | 1192.5 | 604.26 | 41.55 | 645.81 | 45/4.14 | 7/2.76 | 33.12 | 1674 | 327 | 2001 | 141.79 | 0.04793 |
| Grackle | 1192.5 | 604.26 | 76.58 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 1682 | 600 | 2282 | 186.38 | 0.04817 |
| Bittern | 1272 | 644.51 | 44.52 | 689.03 | 45/4.27 | 7/2.85 | 34.17 | 1785 | 349 | 2134 | 151.48 | 0.04494 |
| Pheasant | 1272 | 644.51 | 81.68 | 726.19 | 54/3.90 | 19/2.34 | 35.10 | 1795 | 638 | 2433 | 194.00 | 0.04516 |
| Skylark | 1272 | 644.51 | 17.87 | 662.38 | 36/4.78 | 1/4.78 | 33.42 | 1777 | 140 | 1917 | 115.85 | 0.04472 |
| Dipper | 1351.5 | 684.84 | 47.10 | 731.94 | 45/4.40 | 7/2.92 | 35.16 | 1898 | 368 | 2266 | 160.70 | 0.04230 |
| Martin | 1351.5 | 684.84 | 86.71 | 771.55 | 54/4.02 | 19/2.41 | 36.17 | 1906 | 679 | 2585 | 206.05 | 0.04250 |
| Bobolink | 1431 | 725.10 | 50.32 | 775.42 | 45/4.53 | 7/3.02 | 36.24 | 2009 | 393 | 2402 | 170.71 | 0.03994 |
| Plover | 1431 | 725.10 | 91.87 | 816.97 | 54/4.14 | 19/2.48 | 37.24 | 2019 | 719 | 2738 | 218.24 | 0.04013 |
| Nuthatch | 1510.5 | 765.35 | 52.90 | 818.25 | 45/4.65 | 7/3.10 | 37.20 | 2120 | 414 | 2534 | 177.89 | 0.03784 |
| Parrot | 1510.5 | 765.35 | 86.84 | 862.19 | 54/4.25 | 19/2.55 | 38.25 | 2131 | 759 | 2890 | 230.20 | 0.03802 |
| Lapwing | 1590 | 805.68 | 55.48 | 861.16 | 45/4.77 | 7/3.18 | 38.16 | 2232 | 435 | 2667 | 187.02 | 0.03595 |
| Falcon | 1590 | 805.68 | 102.13 | 907.81 | 54/4.36 | 19/2.62 | 39.26 | 2243 | 799 | 3042 | 242.55 | 0.03613 |
|
|
