| الـ MOQ: | 0.5 كيلو متر |
| السعر: | 0.10-30.99USD/m |
| العبوة القياسية: | طبل خشبي أو طبل الصلب |
| فترة التسليم: | 10 أيام أو أكثر |
| طريقة الدفع: | L/C, D/A, D/P, T/T, إتحاد غربيّ, MoneyGram |
| قدرة التوريد: | 1000km شهريا |

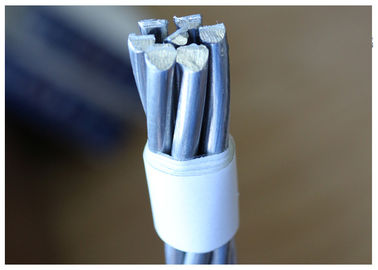

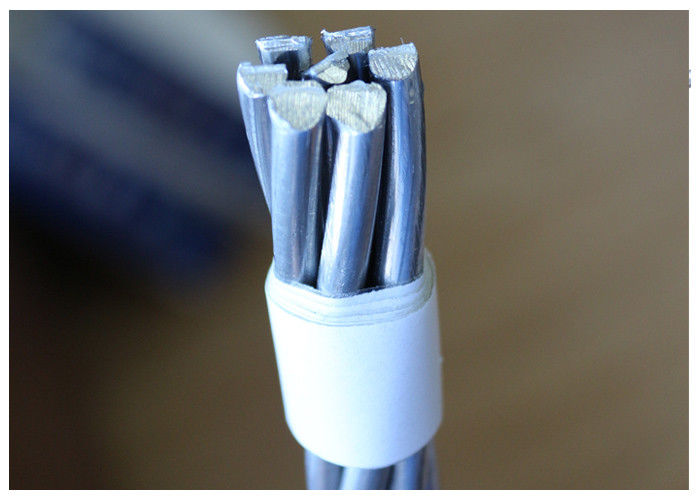

All Stranded Aluminum Wire Bare Conductors AAC Peachbell ASTM B231 Certification
1. Application
The bare conductor: AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.
2. Specification
| AAC | ASTM B231 | ||||||||
| Total Area | Stranding and Wire | Overall Diameter | Linear Mass | Nominal Breaking | Max. D.C. | ||||
| Code Name | Diameter | Load | Resistance at 20℃ | ||||||
| AWG or MCM | mm2 | mm | mm | kg/km | daN | Ω/km | |||
| Peachbell | 6 | 13.29 | 7/1.554 | 4.67 | 37 | 249 | 2.1692 | ||
| Rose | 4 | 21.16 | 7/1.961 | 5.89 | 58 | 396 | 1.3624 | ||
| Iris | 2 | 33.61 | 7/2.474 | 7.42 | 93 | 597 | 0.8577 | ||
| Pansy | 1 | 42.39 | 7/2.776 | 8.33 | 117 | 732 | 0.6801 | ||
| Poppy | 1/0 | 53.48 | 7/3.119 | 9.36 | 147 | 873 | 0.5390 | ||
| Aster | 2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 1100 | 0.4276 | ||
| Phlox | 3/0 | 85.03 | 7/3.932 | 11.80 | 234 | 1347 | 0.3390 | ||
| Oxlip | 4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 1698 | 0.2688 | ||
| Valerian | 250 | 126.71 | 19/2.913 | 14.57 | 349 | 2062 | 0.2275 | ||
| Sneezewort | 250 | 126.71 | 7/4.80 | 14.4 | 349 | 2007 | 0.2275 | ||
| Laurel | 266.8 | 135.16 | 19/3.01 | 15.05 | 373 | 2200 | 0.2133 | ||
| Daisy | 266.8 | 135.16 | 7/4.96 | 14.9 | 373 | 2141 | 0.2133 | ||
| Peony | 300 | 152.0 | 19/3.193 | 15.97 | 419 | 2403 | 0.1896 | ||
| Tulip | 336.4 | 170.45 | 19/3.381 | 16.91 | 470 | 2695 | 0.1691 | ||
| Daffodil | 350 | 177.35 | 19/3.447 | 17.24 | 489 | 2804 | 0.1625 | ||
| Canna | 397.5 | 201.42 | 19/3.673 | 18.36 | 555 | 3184 | 0.1431 | ||
| Goldentuft | 450 | 228.0 | 19/3.909 | 19.55 | 629 | 3499 | 0.1264 | ||
| Syringa | 477 | 241.68 | 37/2.882 | 20.19 | 666 | 3849 | 0.1193 | ||
| Cosmos | 477 | 241.68 | 19/4.023 | 20.12 | 666 | 3708 | 0.1193 | ||
| Hyacinth | 500 | 253.35 | 37/2.951 | 20.65 | 698 | 4035 | 0.1138 | ||
| Zinnia | 500 | 253.35 | 19/4.21 | 20.6 | 698 | 3888 | 0.1138 | ||
| Dahlia | 556.5 | 282.0 | 19/4.346 | 21.73 | 777 | 4327 | 0.1022 | ||
| Mistletoe | 556.5 | 282.0 | 37/3.114 | 21.79 | 777 | 4362 | 0.1022 | ||
| Meadowsweet | 600 | 304.0 | 37/3.233 | 22.63 | 838 | 4703 | 0.0948 | ||
| Orchid | 636 | 322.25 | 37/3.33 | 23.31 | 888 | 4985 | 0.0894 | ||
| Heuchera | 650 | 329.35 | 37/3.366 | 23.56 | 908 | 5095 | 0.0875 | ||
| Flag | 700 | 354.71 | 61/2.72 | 24.48 | 978 | 5146 | 0.0813 | ||
| Verbena | 700 | 354.71 | 37/3.493 | 24.45 | 978 | 5487 | 0.0813 | ||
| Nasturtium | 715.5 | 362.58 | 61/2.75 | 24.76 | 1000 | 5874 | 0.0795 | ||
| Violet | 715.5 | 362.85 | 37/3.533 | 24.74 | 1000 | 5609 | 0.0795 | ||
| Cattail | 750 | 380.0 | 61/2.817 | 25.35 | 1048 | 5985 | 0.0795 | ||
| Petunia | 750 | 380.0 | 37/3.617 | 25.32 | 1048 | 5875 | 0.0795 | ||
| Lilac | 795 | 402.84 | 61/2.90 | 26.11 | 1111 | 6345 | 0.0715 | ||
| Arbutus | 795 | 402.84 | 37/3.724 | 26.06 | 1111 | 6232 | 0.0715 | ||
| Snapdragon | 900 | 456.06 | 61/3.086 | 27.78 | 1257 | 6978 | 0.0632 | ||
| Cockscomb | 900 | 456.06 | 37/3.962 | 27.73 | 1257 | 6848 | 0.0632 | ||
| Goldenrod | 954 | 483.42 | 61/3.177 | 28.6 | 1333 | 7896 | 0.0596 | ||
| Magnilia | 954 | 483.42 | 37/4.079 | 28.55 | 1333 | 7258 | 0.0596 | ||
| Camellia | 1000 | 506.71 | 61/3.251 | 29.36 | 1397 | 7753 | 0.0596 | ||
| Hawkweed | 1000 | 506.71 | 37/4.176 | 29.23 | 1397 | 7608 | 0.0596 | ||
| Larkspur | 1033.5 | 523.68 | 61/3.307 | 29.76 | 1444 | 8012 | 0.0550 | ||
| Bluebell | 1033.5 | 523.68 | 37/4.244 | 29.72 | 1444 | 7863 | 0.0550 | ||
| Marigold | 1113 | 563.93 | 61/3.432 | 30.89 | 1555 | 8628 | 0.0511 | ||
| Hawthorn | 1192.5 | 604.26 | 61/3.551 | 31.05 | 1666 | 9245 | 0.0477 | ||
| Narcissus | 1272 | 644.51 | 61/3.668 | 33.02 | 1777 | 9861 | 0.0477 | ||
| Columbine | 1351.5 | 684.84 | 61/3.78 | 34.01 | 1888 | 10478 | 0.0421 | ||
| Carnation | 1431 | 725.10 | 61/3.89 | 35.03 | 1999 | 10768 | 0.0398 | ||
| Gladiolus | 1510.5 | 765.35 | 61/4.00 | 35.09 | 2110 | 11365 | 0.0376 | ||
|
|
AWG or MCM | mm2 | mm | mm | kg/km | daN | Ω/km | |
| Coreopsis | 1590 | 805.68 | 61/4.099 | 36.51 | 2221 | 11964 | 0.0358 | |
| Jessamine | 1750 | 886.71 | 61/4.302 | 38.72 | 2445 | 13168 | 0.0325 | |
| Cowslip | 2000 | 1013.42 | 91/3.76 | 41.40 | 2791 | 15300 | 0.0285 | |
| Lupine | 2500 | 1266.67 | 91/4.21 | 46.30 | 3524 | 18700 | 0.0230 | |
| Trillium | 3000 | 1520.13 | 127/3.90 | 50.75 | 4232 | 22500 | 0.0192 | |
| Bluebonnet | 3500 | 1773.50 | 127/4.21 | 54.80 | 4985 | 26200 | 0.0166 |
|
|
