| الـ MOQ: | 0.5 كيلو متر |
| السعر: | 0.10-10.99USD/m |
| العبوة القياسية: | طبل خشبي أو طبل الصلب |
| فترة التسليم: | 10 أيام أو أكثر |
| طريقة الدفع: | L/C, D/A, D/P, T/T, إتحاد غربيّ, MoneyGram |
| قدرة التوريد: | 1000km شهريا |
Specifications

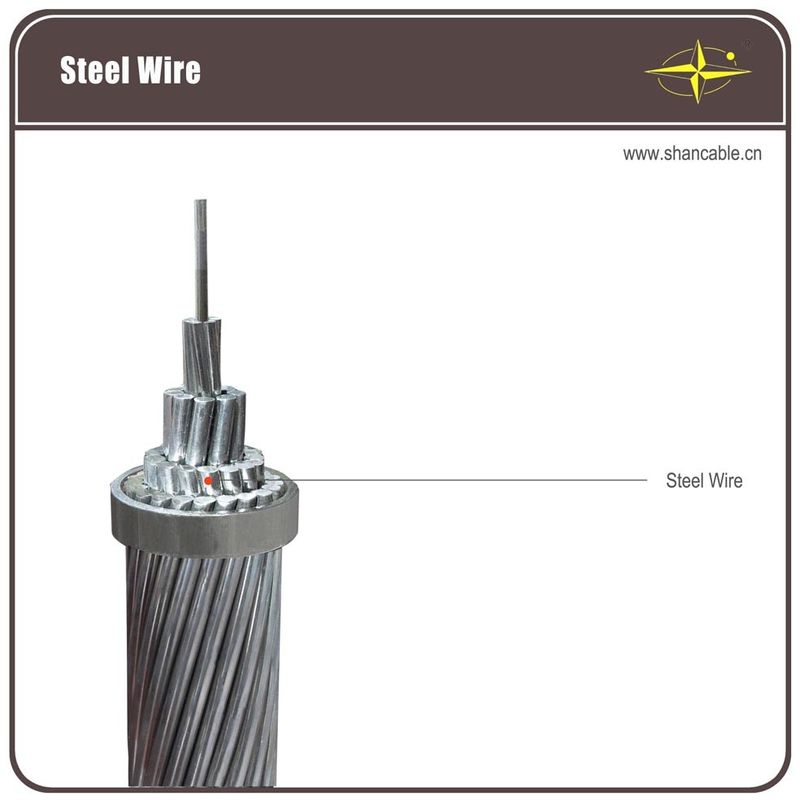

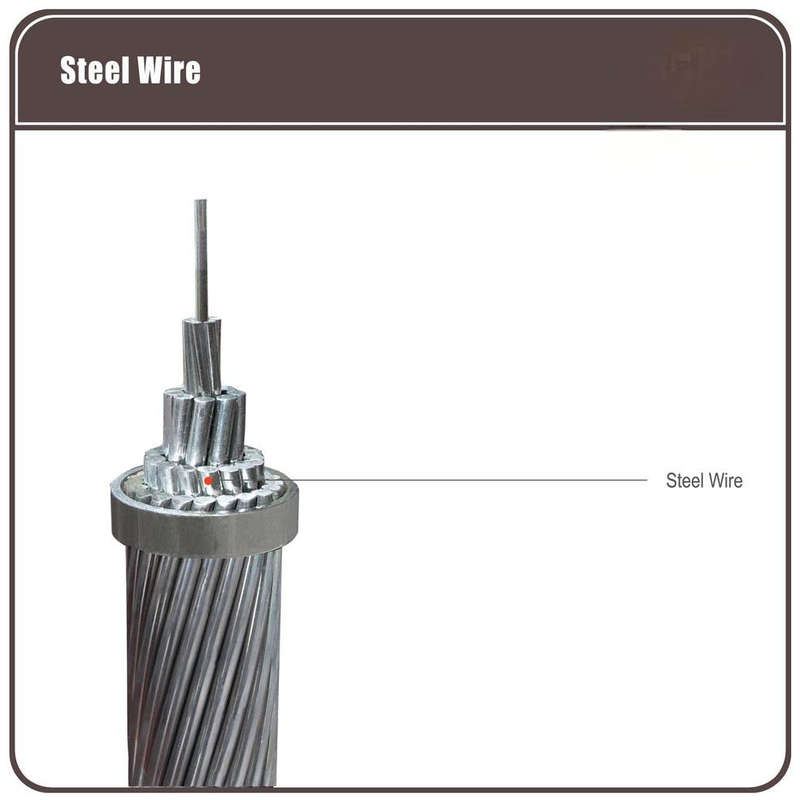

The product galvanized steel wire (GSW) is used for the cord of ACSR (Aluminum Conductor Steel Reinforced) conductor. Being the leading enterprise of this industry, the GSW manufactured by Shenghua has excellent mechanical property, best quality of coating and nice condition of surface.
| Diameter(mm) | Tensile Strength(Mpa) | Weight of Zinc(g/m2) | |||||||
| 1.24~2.25 | 1340~1620 | 185~215 | |||||||
| 2.25~3.00 | 1310~1590 | 230 | |||||||
| 3.00~3.50 | 1290~1550 | 245 | |||||||
| 3.50~4.25 | 1290~1520 | 260 | |||||||
| 4.25~4.75 | 1290~1520 | 275 | |||||||
| 4.75~5.50 | 1290~1520 | 290 | |||||||
| Intensity Level | Wire Diameter | Min. Tensile | Min. Stress With 1% | Min. Extension | Min. Number of 360° | Diameter of Testing | |||
| Strength | Extension | Percentage When L=250 | twists | Mandril | |||||
| mm | mpa | mpa | % | multiple | |||||
| >1.24~2.25 | 1340 | 1170 | 3.0 | 16 | 1 | ||||
| >2.25~2.75 | 1310 | 1140 | 3.0 | 16 | 1 | ||||
| >2.75~3.00 | 1310 | 1140 | 3.5 | 16 | 1 | ||||
| General | >3.00~3.50 | 1290 | 1100 | 3.5 | 14 | 1 | |||
| >3.50~4.25 | 1290 | 1100 | 4.0 | 12 | 1 | ||||
| >4.25~4.75 | 1290 | 1100 | 4.0 | 12 | 1 | ||||
| >4.75~5.50 | 1290 | 1100 | 4.0 | 12 | 1 | ||||
| >1.24~2.25 | 1450 | 1310 | 2.5 | 16 | 3 | ||||
| >2.25~2.75 | 1410 | 1280 | 2.5 | 16 | 3 | ||||
| >2.75~3.00 | 1410 | 1280 | 3.0 | 16 | 4 | ||||
| High | >3.00~3.50 | 1410 | 1240 | 3.0 | 14 | 4 | |||
| >3.50~4.25 | 1380 | 1170 | 3.0 | 12 | 4 | ||||
| >4.25~4.75 | 1380 | 1170 | 3.0 | 12 | 4 | ||||
| >4.75~5.50 | 1380 | 1170 | 3.0 | 12 | 4 | ||||
| >1.24~2.25 | 1620 | 1450 | 2.0 | 14 | 4 | ||||
| >2.25~2.75 | 1590 | 1410 | 2.0 | 14 | 4 | ||||
| >2.75~3.00 | 1590 | 1410 | 2.5 | 12 |
|
5 | |||
| Very High | >3.00~3.50 | 1550 | 1380 | 2.5 | 12 | 5 | |||
| >3.50~4.25 | 1520 | 1340 | 2.5 | 10 | 5 | ||||
| >4.25~4.75 | 1520 | 1340 | 2.5 | 10 | 5 | ||||
| >4.75~5.50 | 1520 | 1270 | 2.5 | 10 | 5 | ||||
GALVANIZED STEEL WIRE/GSW
| ASTM A475 | ||||||
| Number of Wires | Approx. Strand Dia. | Siemens | High | Extra High | Approx. Weight | |
| /Dia. | Martin Grade | Strength Grade | Strength Grade | |||
| Inch | mm | kN | kN | kN | kg/km | |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.040 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.140 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
| 7/1.83 | 7/32 | 5.56 | 11.387 | 17.126 | 24.020 | 145 |
| 7/2.03 | 1/4 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 9/32 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 5/16 | 7.94 | 23.798 | 35.586 | 49.820 | 305 |
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.040 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.70 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.70 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| 19/5.08 | 1 | 25.40 | 209.066 | 325.610 | 464.839 | 2384 |
| 37/3.63 | 1 | 25.40 | 205.508 | 319.827 | 456.832 | 3061 |
| 37/4.09 | 11/8 | 28.58 | 262.000 | 407.457 | 581.827 | 4006 |
| 37/4.55 | 11/4 | 31.75 | 324.720 | 505.318 | 721.502 | 4833 |
|
|
