| الـ MOQ: | 0.5 كيلو متر |
| السعر: | 0.19-10.99USD |
| العبوة القياسية: | طبل خشبي / طبل الصلب |
| فترة التسليم: | 15 أيام أو أكثر |
| طريقة الدفع: | L/C, D/A, D/P, T/T, إتحاد غربيّ, MoneyGram |
| قدرة التوريد: | 50000 كيلومتر شهريا |

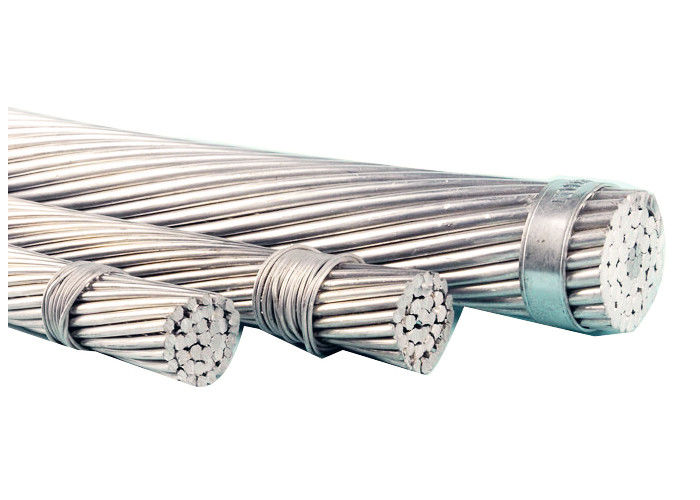

AAC All Aluminium Conductor Creep Resistance High Tension Strength
Specifications
AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
| AAC |
| EN 51082 | ||||||||
| Area | No. of | Diameter | Mass per unit | Rated | DC | |||
| Code Name | wires | Wire | Cond. | length | strength | Resistance | ||
| mm2 | mm | mm | kg/km | kN | Ω/km | |||
| Midge | 23.3 | 7 | 2.06 | 6.18 | 63.8 | 4.20 | 1.2249 | |
| Gnat | 26.9 | 7 | 2.21 | 6.63 | 73.4 | 4.83 | 1.0643 | |
| Mosquito | 36.9 | 7 | 2.59 | 7.77 | 100.8 | 6.27 | 0.7749 | |
| Ladybird | 42.8 | 7 | 2.79 | 8.37 | 117.0 | 7.28 | 0.6678 | |
| Ant | 52.8 | 7 | 3.10 | 9.30 | 144.4 | 8.72 | 0.5409 | |
| Fly | 63.6 | 7 | 3.40 | 10.2 | 173.7 | 10.49 | 0.4497 | |
| Bluebottle | 73.6 | 7 | 3.66 | 11.0 | 201.3 | 11.78 | 0.3880 | |
| Earwig | 78.6 | 7 | 3.78 | 11.3 | 214.7 | 12.57 | 0.3638 | |
| Grasshopper | 84.1 | 7 | 3.91 | 11.7 | 229.7 | 13.45 | 0.3400 | |
| Clegg | 95.6 | 7 | 4.17 | 12.5 | 261.3 | 15.30 | 0.2989 | |
| Wasp | 106.0 | 7 | 4.39 | 13.2 | 289.6 | 16.95 | 0.2697 | |
| Beetle | 106.4 | 19 | 2.67 | 13.4 | 292.4 | 18.08 | 0.2701 | |
| Bee | 132.0 | 7 | 4.90 | 14.7 | 360.8 | 21.12 | 0.2165 | |
| Hornet | 157.6 | 19 | 3.25 | 16.3 | 433.2 | 26.01 | 0.1823 | |
| Caterpillar | 185.9 | 19 | 3.53 | 17.7 | 511.1 | 29.75 | 0.1546 | |
| Chafer | 213.2 | 19 | 3.78 | 18.9 | 586.0 | 34.12 | 0.1348 | |
| Spider | 237.6 | 19 | 3.99 | 20.0 | 652.9 | 38.01 | 0.1210 | |
| Cockroach | 265.7 | 19 | 4.22 | 21.1 | 730.4 | 42.52 | 0.1081 | |
| Butterfly | 322.7 | 19 | 4.65 | 23.3 | 886.8 | 51.63 | 0.0891 | |
| Moth | 373.1 | 19 | 5.00 | 25.0 | 1025.3 | 59.69 | 0.0770 | |
| Drone | 372.4 | 37 | 3.58 | 25.1 | 1027.1 | 59.59 | 0.0774 | |
| Centipede | 415.2 | 37 | 3.78 | 26.5 | 1145.1 | 66.43 | 0.0695 | |
| Maybug | 486.1 | 37 | 4.09 | 28.6 | 1340.6 | 77.78 | 0.0593 | |
| Scorpion | 529.8 | 37 | 4.27 | 29.9 | 1461.2 | 84.77 | 0.0544 | |
| Cicada | 628.3 | 37 | 4.65 | 32.6 | 1732.9 | 100.54 | 0.0459 | |
|
|
