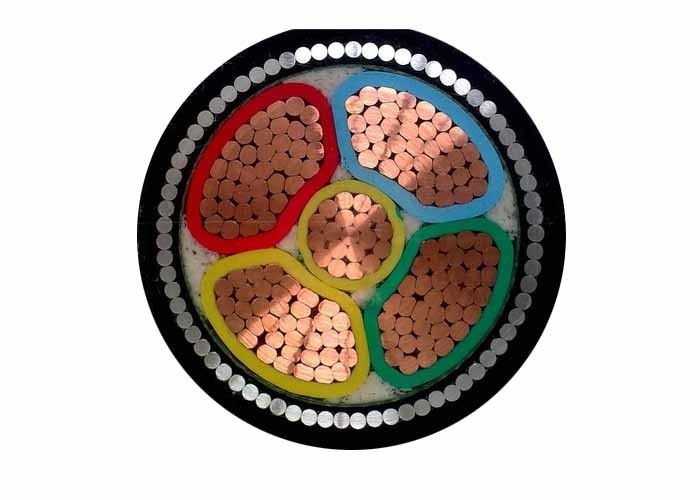

Cable Elect 185MM x5 Core SWA PVC Armoured Electrical Cable China Manufacturer
Constructions
①Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2
②Insulation: XLPE(cross-linked polyethylene) rated at 90oC
③Inner Covering: PVC
④Inner Sheath: PVC
⑤Armoring: Steel Wire
⑥Overall Sheath: PVC type ST8 to IEC 60502, black
Note: Insulation color as per standards or at request
Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1 kV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Sheath Thickness | Steel Wire No./Dia. | Sheath Thickness | Approx. O.D. | Approx. Weight | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | ||
| mm2 | pc/mm | mm | mm | mm | mm | Lower Limit (mm) | Upper Limit (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 16 | 7/1.78 | 0.7 | 1.0 | 34/1.6 | 1.8 | 18.1 | 19.8 | 640 | 1.15 | 3.5 | 83 | 105 |
| 3 × 50 | 10/2.52 | 1.0 | 1.0 | 42/1.6 | 1.8 | 22.7 | 24.4 | 1670 | 0.387 | 3.5 | 160 | 185 |
| 3 × 70 | 14/2.52 | 1.1 | 1.0 | 49/1.6 | 2.0 | 26.1 | 27.8 | 2280 | 0.268 | 3.5 | 200 | 225 |
| 3 × 120 | 24/2.52 | 1.2 | 1.2 | 49/2.0 | 2.2 | 32.3 | 34.0 | 3790 | 0.153 | 3.5 | 285 | 310 |
| 3 × 185 | 37/2.52 | 1.6 | 1.4 | 50/2.5 | 2.5 | 40.9 | 42.6 | 5654 | 0.0991 | 3.5 | 375 | 390 |
| 3 × 240 | 48/2.52 | 1.7 | 1.4 | 55/2.5 | 2.7 | 45.7 | 47.4 | 7243 | 0.0754 | 3.5 | 440 | 450 |
| 3 × 300 | 61/2.52 | 1.8 | 1.6 | 61/2.5 | 2.9 | 50.8 | 52.5 | 9465 | 0.0601 | 3.5 | 505 | 515 |
| 4 × 10 | 7/1.38 | 0.7 | 1.0 | 32/1.6 | 1.8 | 22.4 | 24.3 | 501 | 1.83 | 3.5 | 60 | 77 |
| 4 × 16 | 7/1.78 | 0.7 | 1.0 | 37/1.6 | 1.8 | 24.9 | 26.8 | 778 | 1.15 | 3.5 | 83 | 105 |
| 4 × 25 | 7/2.14 | 0.9 | 1.0 | 43/1.6 | 1.9 | 28.3 | 30.2 | 1160 | 0.727 | 3.5 | 105 | 125 |
| 4 × 70 | 14/2.52 | 1.1 | 1.2 | 41/2.0 | 2.0 | 33.4 | 35.3 | 2928 | 0.268 | 3.5 | 200 | 225 |
| 4 × 150 | 30/2.52 | 1.4 | 1.4 | 47/2.5 | 2.5 | 46.5 | 48.4 | 6238 | 0.124 | 3.5 | 325 | 345 |
| Nom. Cross-section of conductor | Insulation Thickness | Inner Sheath Thickness | Steel Wire Dia. | Outer Sheath Thickness | Approx. O.D. | Approx. Weight | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | mm | mm | mm | mm | mm | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 1x300 | 4.5 | 1.3 | 2.5 | 2.4 | 50.50 | 6056 | ≤0.0601 | 30.5 | 640 | 595 |
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
|
|
