| الـ MOQ: | 500meter |
| السعر: | US$1.67~189.65per meter |
| العبوة القياسية: | براميل خشبية |
| فترة التسليم: | 7 أيام |
| طريقة الدفع: | L/C, T/T, D/A, D/P, ويسترن يونيون, MoneyGram |
| قدرة التوريد: | 30000 كيلومتر في الشهر |

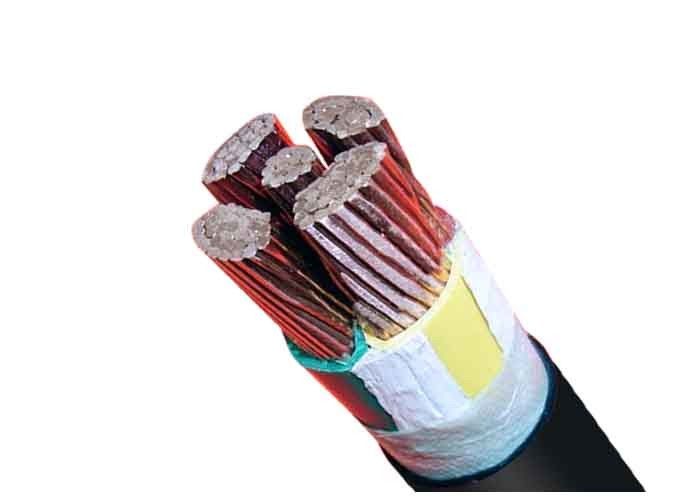

0.6/1kV Five Cores Low Voltage XLPE Insulated PVC Sheathed Power Cable
Power cable
1. Material: Copper
2. Rated voltage: low & medium voltage
3. Wire identification: Red, yellow, blue, white, black or cutomized
4. No. Of cores : Single core cable: from 1.5 mm2 to 1200 mm2;
Multi-core cable: from 1.5 mm2 to 400 mm2
5.Standard: GB/T12706-2008,GB/T19666-2005 & GB20286-2006
(Same standard as IEC) or other requirement.
6. Insulation: PVC, XLPE, PE
7. Sheath:PVC, PE, XLPE
8. Armor: SWA/Steel tape/AWA
9. Application: Suitable for indoor, channel, conduit,underground,vertical well etc.
10. Nominal cross section area: from 0.5 mm2 to 1200 mm2.
11.Packing:roll in drum which is made by wood and iron.
A:packing by plastic film and outside is bamboo pieces;
B:packing by plastic film and outside is wood pieces;
| Type |
Description |
Main Application |
|
| Cu core | Al core | ||
|
(ZR)YJV or (ZR)YJY |
(ZR)YJLV or (ZR)YJLY23 |
(Flame retardant) Cu, Al core XLPE insulated, PVC or PE sheathed power cable. | For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid. |
|
(ZR)YJV22 or (ZR)YJY23 |
(ZR)YJLV22 or (ZR)YJLV23 |
(Flame retardant) Cu, Al core XLPE insulated, steel armoured, PVC or PE sheathed power cable. | For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force , but unable to bear large pulling force. |
|
(ZR)YJLV32 or (ZR)YJLV33 |
(ZR)YJLV32 or (ZR)YJLV33 |
(Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable | For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force. |
|
(ZR)YJLV42 or (ZR)YJLV43 |
(ZR)YJLV42 or (ZR)YJLV43 |
(Flame retardant) Cu, Al core XLPE insulated, thick steel wire armoured, PVC or PE sheathed power cable | For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force. |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
|
|
